Clipsal Iconic Switch Mechanism 3-Position Toggle 250V, 10A

Vivid White | Clipsal Iconic Switch Mechanism 3-Position Toggle 250V, 10A

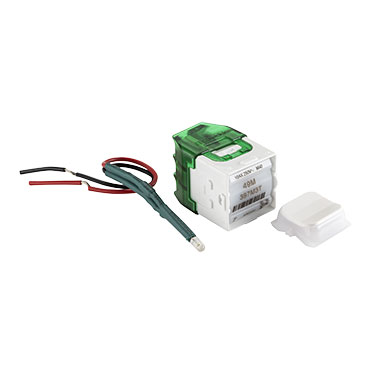

Clipsal Iconic Switch Mechanism 3-Position Toggle 250V, 10A

Item Number: 49M-VW

With its M40 motor ratings, the Clipsal Iconic Switch Mechanism delivers versatile performance in any commercial or residential project. Its three-position toggle makes this wall switch a functional choice for most jobs.

Datasheet

Product Dimensions

Width icon

Width23 mm

Height icon

Height23 mm

Depth icon

Depth32 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal Iconic

Product or component type

switch

Device application

lighting

Colour tint

vivid white

Sustainable offer status

Green Premium product

Physical

Quantity per set

set of 20

Device presentation

mechanism

Control type

rocker

Switch function

3 positions

Marking

ON-OFF-ON

Rated current

10 A

[Ue] rated operational voltage

250 V

Connections - terminals

screw terminal

Height

23 mm

Width

23 mm

Depth

32 mm

Net weight

0.016 kg

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP120506EN

Others

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

20 g

Package 1 Height

3.2 cm

Package 1 width

4.5 cm

Package 1 Length

5.9 cm

Unit Type of Package 2

CAR

Number of Units in Package 2

240

Package 2 Weight

4.8 kg

Package 2 Height

33.5 cm

Package 2 width

26.1 cm

Package 2 Length

33.5 cm
Show all specifications

Frequently Asked Questions

hide show

What are the dimensions of part number 230DRAS1MI?

The dimensions for part number 230DRAS1MI are 600mm (Height) 500mm (Width) 249mm (Depth).


For more information, please visit:
https://www.clipsal.com/Trade/Products/ProductDetail?catno=230DRAS1MI

What is the part number for an Iconic 3 position switch mechanism , labelled UP , OFF , DOWN?

The part number for an Iconic 3 position switch mechanism , labelled UP , OFF , DOWN is - 49M & 49MLBL

For further information , visit links below:-
https://www.clipsal.com/Trade/search-results?q=49M
https://www.clipsal.com/Trade/search-results?q=49MLBL
User-added image49M-VW


What is supplied with the iconic part number 49MLBL?

49MLBL is Iconic - 3 position switch dolly pack labelled SON (Sensor, off, manual) , AOM (Auto, Off On), UOD(Up, Off, Down) in vivid white, clip-in fixing mode.
For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=49MLBL

What is the part number of Iconic 3 position switch, marked Auto-Off-Manual?

Part number of  Iconic 3 position switch mechanism is 49M rated to 250V, 10A. 49MLBL   Iconic, 3position switch dolly pack is also required.
49MLBL is labelled as follows:
Auto-Off-Manual
Sensor off manual
Up-Off-Down
For further information, please visit
https://www.clipsal.com/Trade/Products/ProductDetail?catno=49M
https://www.clipsal.com/Trade/Products/ProductDetail?catno=49MLBL




What's the difference between a regular Home member, an Administrator and the Homeowner?

The Homeowner has access to all functions. Administrator has access to all functions except the ability to transfer the homeowner rights, delete the home and granting administrator rights to other members. A common member only has access to operate devices, receive notifications (alarm, moment/automation trigger, device added/removed and invite) from a home, configure device settings and schedules.
