Frequently Asked Questions

hide show

What are possible causes of SCF1 motor short circuit faults on the ATV61 and ATV71?

Issue:
SCF1 faults on the ATV61 and ATV71.

Product Line:
ATV71, Altivar 71
ATV61, Altivar 61

Environment:
All

Cause:
SCF1 [Motor short circuit]     Short-circuit or grounding at drive output

Resolution:
  • Check the cables connecting the drive to the motor, and the motor’s insulation
    • Using a 1,000V Megger, test the motor and leads
    • Check for tight wiring connections
  • Perform the Transistor test via the [1.10 DIAGNOSTICS] menu with the motor connected.​
    • [Diagnostics] -> [Test Procedures] -> Transistor Test
  • ​Run the drive open circuit (with the motor disconnected, OPL turned off, and Motor Control Type set to V/F 2pts) and check the drive's output (T) terminals for balanced voltages phase to phase
    • ​[1.8 Fault Management] -> [Output Phase Loss] -> set to 'No'
    • [1.4 Motor Control] -> [Motor control type] -> set to 'V/F 2pts'
  • Perform a diode check using terminals U/T1, W/T2, V/T3, PA+ and PC-.
NOTE: This step should be performed when no line voltage is present on the drive. Power down the drive before performing this step.
-Measure (using your meter's diode ABC scale) in one direction, then swap your leads and measure again
Measure between PA+ to T1, T2, and T3.  Then swap leads and test again.
Next measure between PC- to T1,T2,T3 and then swap leads.  (total of 12 measurements: 6 measurements to PA+ and 6 measurements to PC-)
-You should see 'OL' in one direction and a small voltage reading (approximately 0.3-.0.5V) in the other direction and each set of measurements should be consistent between phases.
-Values outside the acceptable range can indicate damage to the IGBT's or other components in the drive.

Return programming to original settings after testing is complete.



What software is required to commission the 5200WHC2 Spacelogic home controller(SLHC).

You will need to have the latest PICED 4.14.x in order to commission a 5200WHC2 Spacelogic home controller(SLHC).

Before transferring the project, PICED will prompt if the firmware version on the unit is older than the one come with PICED

Wiser transfer
This require a firmware update



Link below is the firmware for then new SLHomeController

firmware link

Wiser transfer1

After approximately 15 minutes the unit will do a power cycle



You then now can transfer the PICED Project

Wiser transfer2



Will take 3 minutes to boot up after the project transfer

gateway



Wiser transfer4

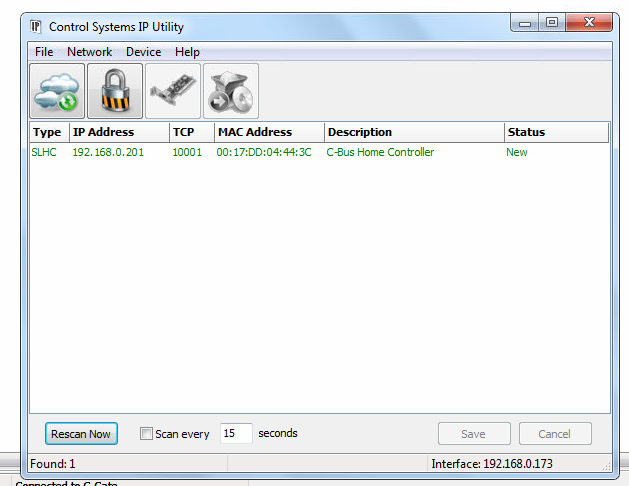

You can check if the wiser is back online by using the Control System IP Utility software that come with Toolkit

Login

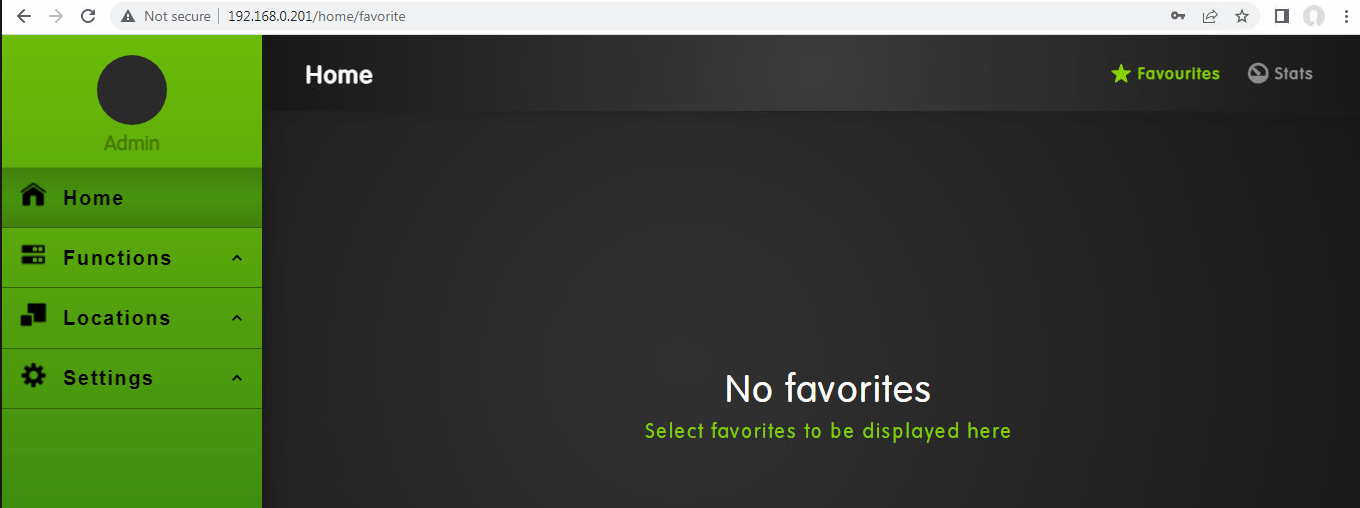

Now you can log in to the wiser by a browser




What are the replacement spring charging motors for the Masterpact NT and NW?

Product Line:
Masterpact NT, Masterpact NW

Resolution:
Spring Charging Motor (MCH)
VoltageT-FrameW- & Y-Frame
FixedDrawoutFixedDrawout
AC
48S47391S47461S48207S48522
100–130S47395S47465S48211S48526
200–240S47396S47466S48212S48527
277S47398S47468S48213S48528
380–415S47398S47468S48214S48529
440–480S47400S47470S48215S48530
DC
24–30S47390S47460S48206S48521
48–60S47391S47461S48207S48522
100–130S47392S47462S48208S48523
200–250S47393S47463S48209S48524


See instruction bulletins,
Spring Charging Motor (MCH) for Masterpact® NT, Electrically-operated P-frame and NS630b–NS1600 Circuit Breakers
48049-236-01
Spring-charging Motor (MCH) for Masterpact® NW Circuit Breakers
48049-149-02

NW
NW Spring charging motor

NT
NT spring charging motor

What is the part number for the control card for the ATV312 drive?

Issue:
Control card for the ATV312 drive.

Product Line:
Altivar ATV312

Environment:
All

Cause:
N/A

Resolution:
VW3A31201 is the control  input/output control card only.  The package includes the control board which has the Input/Output screw terminal connections, RJ45 jack and a mounting screw.

control IO card photo 1

Video: How do I customize the display on the Altivar Process Drive?

Issue:
How do I adjust/customize the main display on the Altivar Process Drive?

Product Line:
Altivar Process Drive (ATV630, ATV930, ATV650, ATV950, ATV660, ATV960, ATV680, ATV980)

Environment:
All serial numbers for Altivar Process Drive​

Resolution:



To adjust parameters on the top of the screen
- [My preferences] [Customization] [Param. Bar Select]

A
To adjust parameters in the middle of the startup screen
- [My preferences] [Customization] [Display Screen Type] [MPC]
C
B


Will SoMove display the VW3A3408 resolver option cards serial number, part number or firmware version?

Issue:
Is SoMove showing option card serial number, part number or firmware version?

Product Line:
Altivar 71 only with the VW3A3408 resolver option card

Environment:
All

Cause:
Wants to know if SoMove will display the serial number, part number and firmware number.

Resolution:
SoMove will only display the reference part number of the card only see example below.

nh
