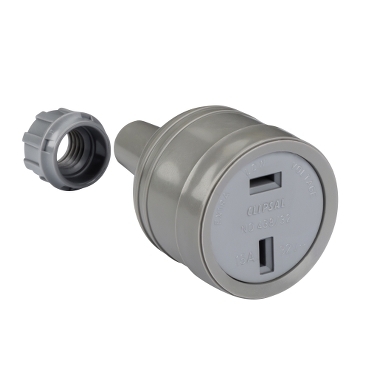

Flexible Cord Extension Socket, 32VAC, 10A, 2 PIN ParAllel

White Electric | Flexible Cord Extension Socket, 32VAC, 10A, 2 PIN ParAllel

Flexible Cord Extension Socket, 32VAC, 10A, 2 PIN ParAllel

Item Number: 438/32-WE

Retail
$39.56
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Standard Series

Product brand

Clipsal

Physical

Mercury free

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

EU RoHS Directive

Compliant

RoHS exemption information

Yes

Quantity per set

set of 1

Marking

without marking

Local signalling

without light indicator

[In] rated current

15 A

[Ue] rated operational voltage

32 V DC

Depth

71 mm

Standards

  • AS/NZS 3112
  • AS 3100
  • AS 3109
  • AS/NZS 3122:approval number S/1
    • Material

      Material

      PVC (polyvinyl chloride)

      Others

      Package 1 Height

      40 mm

      Package 1 Length

      100 mm

      Package 1 Weight

      49 g

      Package 1 width

      70 mm

      Cover type

      complete housing

      Diameter

      43 mm
      Show all specifications

      Documents & downloads

      hide show
      Filter items
      • All

      • Product Brochures

      • Technical Data Catalogues

      • Certificates (MSDS)

      Frequently Asked Questions

      hide show

      What is the part number for the 2 pin 32V 15amp plug to go with the 438/32?

      The part number for the 2 pin 32V 15amp plug to go with the 438/32 is - 492/32

      For further information , visit link below:-
      https://www.clipsal.com/Trade/search-results?q=492/32
      User-added image

      Does the Clipsal 438/2 suit the 492

      The 438/2 does suit the 492.

      Is there a wall mounted version of the 438/32?

      Yes, the surface socket version is a 402/32-WE

      what is the surface socket for 492/32 ?

      402/32

      What is the plug to suit the 408/3?

      The plug to suit the 408/3 is a 409/3.



      What are the sockets suitable for 492-WE?

      The suitable sockets for 492-WE are :
      438/2 - extension socket
      402-WE - surface socket
      Show More
