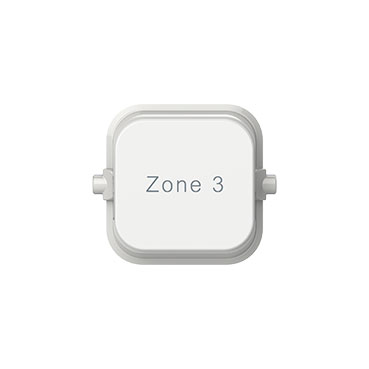

Clipsal Iconic Zone 3 Rocker 10 Pack

Vivid White | Clipsal Iconic Zone 3 Rocker 10 Pack

Clipsal Iconic Zone 3 Rocker 10 Pack

Item Number: 40Z3R-VW

Build this product i

Retail
$33.55
RRP (Inc. GST)

Easily control the flow of power to areas of your home or office with the Clipsal Iconic Dolly Rocker switch. Designed for large spaces with multiple zones, the dolly rocker allows you to save time and energy by not having to power unnecessary spaces.

Product Dimensions

Width icon

Width23 mm

Height icon

Height23 mm

Depth icon

Depth9 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Sustainable offer status

Green Premium product

Range

Clipsal Iconic

Product or component type

rocker

Colour tint

vivid white (VW)

Physical

Environmental Disclosure

ENVPEP120506EN

Mercury free

Yes

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

EU RoHS Directive

Compliant

RoHS exemption information

Yes

Quantity per set

set of 10

Marking

ZONE3

Switch function

2 positions

Height

23 mm

Width

23 mm

Depth

9 mm

Others

Number of Units in Package 1

1

Package 1 Height

9.17 mm

Package 1 Length

175 mm

Package 1 Weight

14 g

Package 1 width

98 mm

Unit Type of Package 1

PCE
Show all specifications
