Clipsal Iconic Switch Mechanism 4-Position, 250V, 10A4 Colour

Back to Switch Home Switch Mechanisms Switch

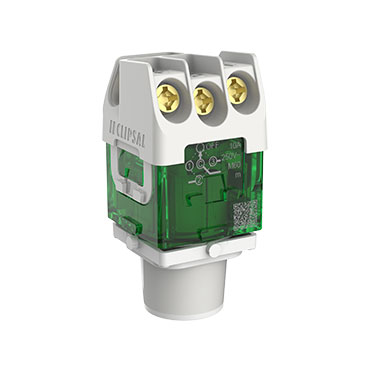

Clipsal Iconic Switch Mechanism 4-Position, 250V, 10A4 Colour

Clipsal Iconic Switch Mechanism 4-Position, 250V, 10A4 Colour

Item Number: 40RSM2

Retail
$23.35
RRP (Inc. GST)

The Clipsal Iconic Rotary Switch Mechanism is an adjustable switch with four settings for flexible and convenient use.

Where To Buy

Product Dimensions

Width icon

Width23 mm

Height icon

Height23 mm

Depth icon

Depth50 mm

See full specifications

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

Clipsal Iconic

Product or component type

selector switch

Device application

lighting

Colour tint

vivid white

Sustainable offer status

Green Premium product

Physical

Quantity per set

set of 20

Device presentation

mechanism

Control type

rotary knob

Switch function

4 positions

Marking

0 - 1 - 0 - 2

Rated current

10 A

[Ue] rated operational voltage

250 V

Connections - terminals

screw terminal

Height

23 mm

Width

23 mm

Depth

50 mm

Net weight

0.02 kg

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP120506EN

Material

Material

plastic

Others

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

24 g

Package 1 Height

25 mm

Package 1 width

60 mm

Package 1 Length

100 mm
Show all specifications

Frequently Asked Questions

hide show

Is there a rotary switch mech in 30 series?

Yes, We offer the 30RSM3 which is a rotary 3 on 1 off and the 30RSM2 which is a rotary 2 on 2 off.

is there a generic capacitor only, available for fan speed controllers ?

No, we only sell the capacitors with our fan controllers, as capacitor ratings vary amongst brands
If alternate brands are used the original capacitor for the fan  can be used with a 3 position rotary mech such as the 30RSM3 or 60RSM3
For more information please visit the Clipsal web site on the link provided
https://www.clipsal.com/Trade/search-results?q=fan%20control





Do you sell the 30CSFM mech on its own (less capacitor)?

No, however we do sell a 30RSM3 which is a 3 position switch. it looks entierly different how ever it has the same operating characteristics.

Is there a rotary switch for the Saturn 4000 series to use with existing capacitors for fans?

The 60RSM3 is a 4 position ( off, 1,2,3 ) mechanism that can be used with existing capacitors.

Some of the key features are:
  • Rotary (3 On/1 Off)
  • 250VAC, 10A
For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=60RSM3



What is the part number of Iconic LED indicator lights on the mechanism?

40MLEDW is the part number of Iconic LED indicator lights on the mechanism. It can be used on 40M, 40USM and 40MI only to upgrade them to luminous mechanisms. They are warm white LEDs and can be easily wired and set as locator or indicator.
For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?CatNo=40MLEDW&mg=341&g=200000362
