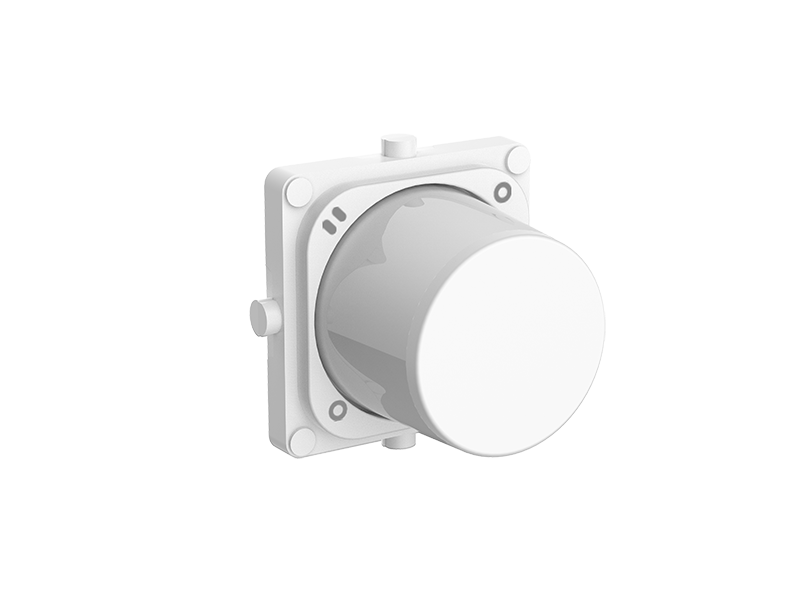

Mech Sw 4-pos Rot OFF-1-OFF-2 10A 250V

Clipsal Iconic - Switch Mechanism, 4-Position Off-1-OFF-2, 250V, 10A

Catalogue Number: 40RSM2
Mech Sw 4-pos Rot OFF-1-OFF-2 10A 250V
Colour:
Colour: Per UOM Std.
  • 1 PCE

Specifications

hide show
Range
Clipsal Iconic
Product or component type
selector switch
Device application
lighting
Colour tint
vivid white
Quantity per set
set of 20
Device presentation
mechanism
Control type
rotary knob
Switch function
4 positions
Marking
0 - 1 - 0 - 2
Rated current
10 A
[Ue] rated operational voltage
250 V
Material
plastic
Connections - terminals
screw terminal
Height
23 mm
Width
23 mm
Depth
50 mm
Net weight
0.02 kg
EU RoHS Directive
Compliant
Environmental Disclosure
ENVPEP120506EN
Circularity Profile
N/A

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • Product Environmental

  • Certificates (MSDS)

Frequently Asked Questions

hide show

What colour knobs come with the 40RSM2 and RSM3?

This product comes standard with a Vivid White knob (VW). If any other colour is required a knob kit is required.
The part numbers are a 40RSM2KB and 40RSM3KB. The knob kit comes in all colours.

For further information please visit www.clipsal.com/Trade/search-results?q=40RSM


Is the 40CSFM the same as the 40RSM3 without the capacitor?

Yes, the 40CSFM is the same as the 40RSM3 but without the capacitor and pictogram on the front.

Can i get a knob only for a 30SRM3?

Yes the part number is 30RSM3-KB.

Is there a rotary switch mech in 30 series?

Yes, We offer the 30RSM3 which is a rotary 3 on 1 off and the 30RSM2 which is a rotary 2 on 2 off.

What colour knobs come with the 40RSM2 and RSM3?

This product comes standard with a Vivid White knob (VW). If any other colour is required a knob kit is required.
The part numbers are a 40RSM2KB and 40RSM3KB. The knob kit comes in all colours.

For further information please visit www.clipsal.com/Trade/search-results?q=40RSM



What is the part number for a Saturn range rotary dimmer?

The part numbers for a Saturn range rotary dimmer are - 60RSM2 & 60RSM3

For further information , visit link below;-
https://www.clipsal.com/Trade/search-results?q=60RSM2
https://www.clipsal.com/Trade/search-results?q=60RSM3


What is the part number for a rotary switch mech for the saturn series?

The part number for a rotary switch mech for the saturn series is - 60RSM2 or 60RSM3

For further information , visit link below:-
https://www.clipsal.com/Trade/search-results?q=60RSM2
https://www.clipsal.com/Trade/search-results?q=60RSM3

is there a generic capacitor only, available for fan speed controllers ?

No, we only sell the capacitors with our fan controllers, as capacitor ratings vary amongst brands
If alternate brands are used the original capacitor for the fan  can be used with a 3 position rotary mech such as the 30RSM3 or 60RSM3
For more information please visit the Clipsal web site on the link provided
https://www.clipsal.com/Trade/search-results?q=fan%20control





Is there a rotary switch for the Saturn 4000 series to use with existing capacitors for fans?

The 60RSM3 is a 4 position ( off, 1,2,3 ) mechanism that can be used with existing capacitors.

Some of the key features are:
  • Rotary (3 On/1 Off)
  • 250VAC, 10A
For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=60RSM3



What is the M rating for on your switches?

The M rating is a rating given to distinguish the current size of a motor that the specific switch can handle.  This is resolved by dividing the M rating by 4.

E.g. M rating = M50

50÷4 =12.5A Therefore this switch has the capacity to drive a motor with a rating of 12.5A.

Is there a 60RSM3 Tech Sheet?

No, unfortunatly there is no tech sheet. However, there is a basic instruction manual.

For more information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=60RSM3

Or find attached PDF for basic instructions.

https://www.sparkydirect.com.au/assets/thumbL/4061EDIM-KB.jpg


Will the 30RSM mechanism fit into a Saturn plate?

No, unfortunately this mechanism does'nt fit the Saturn series. However, this mechanism will fit into the coms Saturn series comunication plate 4031VH.

Do you sell the 30CSFM mech on its own (less capacitor)?

No, however we do sell a 30RSM3 which is a 3 position switch. it looks entierly different how ever it has the same operating characteristics.

What is the size of the inter conductor for the N-series recloser cables (38kV)?

This size will vary depending upon the rating of the conductors:


  • 1. 250A 80mm2
    2. 340A 120mm2
    3. 400A 180mm2
    4. 630A 240mm2
    5. 800A 400mm2

    These are shown in more detail in the attached guide.

    Olex cables.pdfOlex cables.pdf


Legacy KB System (APS) Data: RESL212274 V1.0, Originally authored by DaFr on 08/09/2013, Last Edited by DaFr on 08/09/2013
Related ranges: Others protection relays

What is the part number for a 30 series, 4 position rotary mechanism?

30RSM3 is a 30 Series, 250V 15A rotary mechanism.

Key Features

  • Rotary (3 On/1 Off)
  • 30 series
  • Also suitable for 12 V DC
  • Audio and control applications
  • Switch positions indicated in window
  • M50 rating
For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=30RSM3



What is the part number of a dolly to suit 40M32, Iconic 32A mechanism?

40R32 is the part number for a dolly to suit 40M32. It is available in Vivid White (VW), Warm Grey (WY), Cool Grey (CY) and Anthracite (AN).

For further information, please visit https://www.clipsal.com/Trade/search-results?q=40r32



What is the part number of Iconic LED indicator lights on the mechanism?

40MLEDW is the part number of Iconic LED indicator lights on the mechanism. It can be used on 40M, 40USM and 40MI only to upgrade them to luminous mechanisms. They are warm white LEDs and can be easily wired and set as locator or indicator.
For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?CatNo=40MLEDW&mg=341&g=200000362
