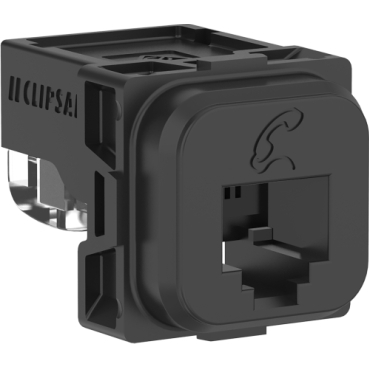

Clipsal Actassi Connector RJ12 4 Pin Telephone Symbol

Back to Connectors, Adaptors, Plugs and Sockets Home Connectors, Adaptors, Plugs, Leads Connectors, Adaptors, Plugs and Sockets

Extra Vivid White | Clipsal Actassi Connector RJ12 4 Pin Telephone Symbol

Clipsal Actassi Connector RJ12 4 Pin Telephone Symbol

Item Number: 40RJ64SMT-XW

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Product compatibility

RJ12 plug

Warranty

18 months

Range

Actassi

Product or component type

modular jack

Colour tint

  • connector housing: white (ABS + PC)
  • top cover: white (PC)

Colour code

RAL 9010

Physical

Insulation resistance

initial insulation resistance: > 500 MOhm at 100 V DC

Connector type

RJ12

AWG gauge

AWG 24...AWG 22

Mechanical durability

750 cycles

Pin number

4 pins of copper alloy and gold plated conforming to IEC 60603-7

Tool type

punch down tool

Cable outer diameter

0.8...1.4 mm

Cable shielding type

UTP

Communication network category

3

Communication network type

10/100BASE-T

Connections - terminals

IDC

Type of footprint

40 mech

Height

22 mm

Length

30 mm

Width

18 mm

Net weight

0.008 kg

Ambient air temperature for operation

-10...60 °C

Ambient air temperature for storage

-10...60 °C

Product certifications

RCM

Standards

  • ANSI/TIA-568-C.2
  • ISO/IEC 11801:2011 Ed.2.2
  • AS/NZS 3080:2003

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Device presentation

two piece design

Type of packing

individual bag

Quantity per set

set of 1

Others

Targeted region

Asia Pacific.

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

6.0 g

Package 1 Height

3 cm

Package 1 width

3.7 cm

Package 1 Length

4.7 cm
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Product Environmental

  • Certificates (MSDS)

300 Series Technical Wiring Brochure
pdf

300 Series Technical Wiring Brochure

DATE

06 Oct 2021

VERSION

1

DOWNLOAD

(9.5 MB)
Residential Energy Efficiency Guide, 20097
PDF

Residential Energy Efficiency Guide, 20097

DATE

24 Sep 2020

VERSION

1

DOWNLOAD

(5.8 MB)
Brochure - Iconic Range Overview
PDF

Brochure - Iconic Range Overview

DATE

14 Sep 2020

VERSION

1

DOWNLOAD

(11.6 MB)
BROCHURE - Pro Series Range Overview
PDF

BROCHURE - Pro Series Range Overview

DATE

13 Feb 2020

VERSION

1

DOWNLOAD

(5.1 MB)
BROCHURE - 40 Series Technical Wiring
PDF

BROCHURE - 40 Series Technical Wiring

DATE

23 Jan 2020

VERSION

1

DOWNLOAD

(15.5 MB)
Actassi Network Connectivity - Cat 6A solutions with reliable performance
PDF

Actassi Network Connectivity - Cat 6A solutions with reliable performance

DATE

29 Oct 2019

VERSION

1

DOWNLOAD

(2.6 MB)
Actassi Cat6A Network connectivity
pdf

Actassi Cat6A Network connectivity

DATE

10 Sep 2019

VERSION

1

DOWNLOAD

(3 MB)
StarServe Data Home Distribution Units. Fibre to the home solutions, 23487
PDF

StarServe Data Home Distribution Units. Fibre to the home solutions, 23487

DATE

12 Oct 2018

VERSION

1

DOWNLOAD

(645.9 KB)
Clipsal ICONIC Collection Brochure 998-20216468_AU-GB
PDF

Clipsal ICONIC Collection Brochure 998-20216468_AU-GB

DATE

12 Oct 2018

VERSION

1

DOWNLOAD

(1.6 MB)
Clipsal ICONIC Product Overview Brochure 998-20218554_AU-GB
PDF

Clipsal ICONIC Product Overview Brochure 998-20218554_AU-GB

DATE

12 Oct 2018

VERSION

1

DOWNLOAD

(3.9 MB)
2000 Series - Functionality, Flexibility and Fashion
PDF

2000 Series - Functionality, Flexibility and Fashion

DATE

12 Oct 2018

VERSION

1

DOWNLOAD

(1.5 MB)
A Great Gang of Surrounds
PDF

A Great Gang of Surrounds

DATE

12 Oct 2018

VERSION

1

DOWNLOAD

(672.6 KB)
Actassi RJ45 S110 Connectors Brochure
PDF

Actassi RJ45 S110 Connectors Brochure

DATE

06 Sep 2018

VERSION

1

DOWNLOAD

(7.8 MB)
Network Connectivity - Clipsal Actassi Quick Termination Tool. Designed to save you time and money, 27224
PDF

Network Connectivity - Clipsal Actassi Quick Termination Tool. Designed to save you time and money, 27224

DATE

24 Aug 2018

VERSION

1

DOWNLOAD

(145 KB)
Actassi Flex and iFlex Brochure
PDF

Actassi Flex and iFlex Brochure

DATE

09 Jun 2018

VERSION

1.0

DOWNLOAD

(3.7 MB)
3105FF-FMRA RIGHT ANGLE ADAPTOR
PDF

3105FF-FMRA RIGHT ANGLE ADAPTOR

DATE

21 Dec 2016

VERSION

1

DOWNLOAD

(207.9 KB)
Actassi Category 7A GG45 Product Overview Catalogue. Your Complete Actassi 7A Solution, 24076
PDF

Actassi Category 7A GG45 Product Overview Catalogue. Your Complete Actassi 7A Solution, 24076

DATE

21 Dec 2016

VERSION

1

DOWNLOAD

(1.7 MB)
Modular Switchboards to suit every application, 13227
PDF

Modular Switchboards to suit every application, 13227

DATE

21 Dec 2016

VERSION

1

DOWNLOAD

(450.3 KB)
PEP - RJ45 JACK CAT6A UTP KEYSTONE SH WHITE
ZIP

PEP - RJ45 JACK CAT6A UTP KEYSTONE SH WHITE

DATE

03 Jul 2020

VERSION

1

DOWNLOAD
RCM Certificate for CONNECTOR RJ12 4 PIN TELEPHONE
PDF

RCM Certificate for CONNECTOR RJ12 4 PIN TELEPHONE

DATE

02 Sep 2020

VERSION

1

DOWNLOAD

(227.5 KB)

Frequently Asked Questions

hide show

What is the part code for a Clipsal Telephone Mech

 The part code to fit 30 series is 30RJ64SMT
 The part code to fit 40 series 40RJ64SMT
