Clipsal Saturn 4000 Mounting Frame Vertical/Horizontal, 5 GangVertical/Horizontal Mount, 1 Gang

White Electric | Clipsal Saturn 4000 Mounting Frame Vertical/Horizontal, 5 GangVertical/Horizontal Mount, 1 Gang

Clipsal Saturn 4000 Mounting Frame Vertical/Horizontal, 5 GangVertical/Horizontal Mount, 1 Gang

Item Number: 4000VH1-WE

Retail
$8.07
RRP (Inc. GST)

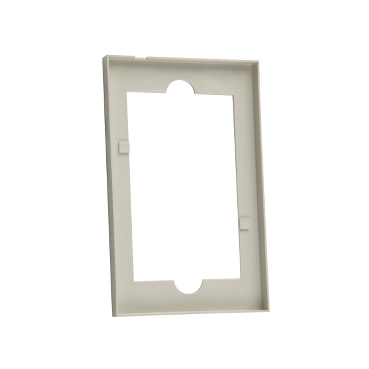

Create the perfect finish by matching the wall colour to the switch frame, and bring the switch or power point grid to the same height as the front cover. The Clipsal Saturn 4000VH1 mounting frame can be used with either vertical or horizontal installations.

Product Dimensions

Width icon

Width116 mm

Height icon

Height75 mm

Depth icon

Depth6.9 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Clipsal Saturn Horizon Silver Group shot
Saturn 4000 Espresso Black 4025-EB
Clipsal Saturn 4000 Ocean Mist, 4025-OM
Saturn 4000 Pure White 4025-PW

Specifications

Design

Range of product

Saturn Series 4000

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Mounting position

horizontal and vertical

Depth

6.9 mm

Width

116 mm

Height

75 mm

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP120506EN

Others

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

9 g

Package 1 Height

4 mm

Package 1 width

78 mm

Package 1 Length

118 mm
Show all specifications

Frequently Asked Questions

hide show

Do we make a 4000VH1 for saturn architrave?

Unfortunately no we don't.

What is the Cut-Out, Dimensions and/ or Template for a 4000VH2 quad surround?

Please see the below image for the Dimensions and/ or Template for a 4025H2 quad outlet.

Does the 4000VH1 Fit the Zen range?

The decorative surround 4000VH1 will Fit the Zen range.



For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=4000VH1



Will there be a Saturn with a white back instead of black

No - You will need to use the mounting frames 4000VH1

What is the mounting frame for the 4025H2

 Part code is 4000H2

What are the Modbus addresses in ADVC controller?

Modbus addresses in ADVC controller are detailed in the Modbus protocol map found in the Modbus Communication page. The Modbus addresses in ADVC controller are categorized as four types:



Binary Output, this is equivalent to Coils

Binary Inputs, equivalent to Discrete Inputs

Analog Inputs, equivalent to Input Registers

Analog Outputs, equivalent to Holding Registers



On many Modbus devices, the Modbus addresses are numbered like this



• The coils are numbered from 00001 onward

• The input bits are numbered from 10001 onward

• The input registers are numbered from 30001 onward

• The holding registers are numbered from 40001 onward



However, on the ADVC mapping table, the addresses shown are the offset values only. Eg, If you want to read the "Switchgear Open" from the below Binary Input table (point number zero), you will need to use function code 02 (Read Discrete Input) to read the address 10001 (which is 10001+ 0)



Show More
Homeowner relaxed in their kitchen with Saturn 4000 light switches

Range

Simplicity. Beauty. Style.

The Clipsal Saturn 4000 Series is specifically designed to offer a seamless electrical solution for the home. It offers stylish wall switches and sockets with the choice of glass-look fascia’s in three distinctive colours, or the metallic finishes of Saturn Horizon.

Saturn 4000 goes beyond simple light switches and power points. It is a complete electrical accessory solution that gives superior functionality while enhancing your home’s décor.

Its revolutionary push button technology gives you smooth reliable operation at the touch of a button. And the architecturally designed fascias look great and are a breeze to clean.
