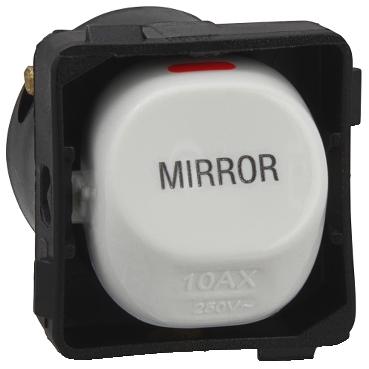

Switch Mechanisms, 30 Series, 10A Mechanisms - Marked, MIRROR

White Electric | Switch Mechanisms, 30 Series, 10A Mechanisms - Marked, MIRROR

Switch Mechanisms, 30 Series, 10A Mechanisms - Marked, MIRROR

Item Number: 30M-MIRROR-WE

Retail
$27.09
RRP (Inc. GST)
Colour White Electric (WE)
  • White Electric 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • Series 30
  • Standard Series
    • Product brand

      Clipsal

      Sustainable offer status

      Green Premium product

      Physical

      Device presentation

      basic element

      Switch function

    • 2-way
    • 1-way
      • Actuator

        rocker

        Number of rocker

        1

        Device mounting

        flush

        Local signalling

        without

        [Ue] rated operational voltage

        250 V AC

        Rated current

        10 A

        Marking

        mirror

        EU RoHS Directive

        Compliant

        Mercury free

        Yes

        RoHS exemption information

        Yes

        China RoHS Regulation

        Product out of China RoHS scope. Substance declaration for your information

        Environmental Disclosure

        ENVPEP120506EN

        Others

        Marking location

        marking on surface

        Unit Type of Package 1

        PCE

        Number of Units in Package 1

        1

        Package 1 Weight

        14 g

        Package 1 Height

        30 mm

        Package 1 width

        22 mm

        Package 1 Length

        22 mm

        Unit Type of Package 2

        BB1

        Number of Units in Package 2

        10

        Package 2 Weight

        0.16 kg

        Package 2 Height

        39 mm

        Package 2 width

        55 mm

        Package 2 Length

        115 mm

        Unit Type of Package 3

        CAR

        Number of Units in Package 3

        500

        Package 3 Weight

        8 kg

        Package 3 Height

        237 mm

        Package 3 width

        203 mm

        Package 3 Length

        300 mm
        Show all specifications

        Documents & downloads

        hide show
        Filter items
        • All

        • Product Brochures

        • Certificates (MSDS)

        • Corporate Marketing

        Frequently Asked Questions

        hide show

        How can we use the M221 to read UINT32 and FLOAT32 data types out of a Power meter PM5300?

        Symptoms:
        • If you use the READ_VAR at address 130 with quantity = 1 you will get an error : CommError = 254 and OperError = 3.
        • If you change the quantity = 2 you will still get the same error : CommError = 254 and OperError = 3: You will get the high order byte in %MW130 = 0 and lower order byte in %MW131 = 0.
        The general register list for the Power meters gives you the Jbus addressing registers and not the Modbus addressing registers.
        Jbus addressing starts at n and the Modbus addressing then should be n -1.
        • If you now use the READ_VAR at address 129 (n -1) with quantity = 1 you will get the same error : CommError = 254 and OperError = 3.
        • If you change the quantity = 2 life is good: You will get the high order byte in %MW130 = xxxx and lower order byte in %MW131 = xxx.

        SoMachine Basic FB send receive SMS: Com Error 255 with Oper Error 16

        OperError Codes when CommError Code is 255 (Message refused)

           Values   Operation

        16
          Phone number of the received message not matching with the list (white list protection)
        17
        Received message doesn’t match with the cmd list (issued only if the sender phone number matches with the one entry of the phone list)

        Solution:
        16 : Write the Phone number list with international notation, exemple: for 0518497647 use 33518497647  where 33 is the international code number of the country.
        17 : The received message must be the same as the one configured (Case sensitive)
