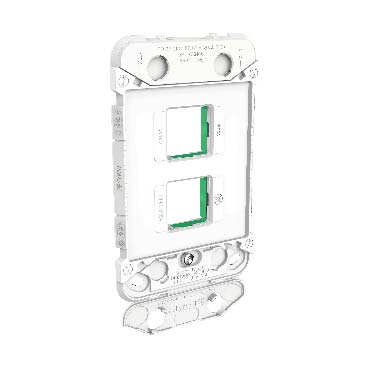

Clipsal Iconic Switch Grid 2 Gang, Horizontal/Vertical Mount

Clipsal Iconic Switch Grid 2 Gang, Horizontal/Vertical Mount

Clipsal Iconic Switch Grid 2 Gang, Horizontal/Vertical Mount

Item Number: 3042G

Build this product i

Retail
$7.32
RRP (Inc. GST)

Product Dimensions

Width icon

Width71 mm

Height icon

Height115 mm

Depth icon

Depth12 mm

See full specifications

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Clipsal Iconic 3025 exploded view
3043G Rear Perspective

Specifications

Design

Range

Clipsal Iconic

Product or component type

fixing frame

Aesthetic name

Iconic

Physical

Number of gangs

2 gangs

Fixing mode

by screws

Range compatibility

cover plate

Provided equipment

screws

Depth

12 mm

Width

71 mm

Height

115 mm

Net weight

0.044 kg

Type of packing

polybag

EU RoHS Directive

Under investigation

Environmental Disclosure

ENVPEP120506EN

Others

Package 1 Weight

38.62 g

Package 1 Height

15.84 mm

Package 1 width

73.3 mm

Package 1 Length

120.7 mm
Show all specifications

Frequently Asked Questions

hide show

What is the part number for a 6 gang switch for the Iconic range?

The part number for a 6 gang switch for the Iconic range is - 3046G & 3046C

For further information , visit link below:-
https://www.clipsal.com/Trade/search-results?q=3046G
https://www.clipsal.com/Trade/search-results?q=3046C
User-added image

User-added image



Is Iconic intermediate mechanism available assembled on a switch plate?

Unfortunately, the Iconic intermediate mechanism is not available assembled on a plate. It can put together using below part numbers;
40MIL  - Clipsal Iconic Intermediate Switch Mechanism, 250V, 10A, LED.
+
3041G - Clipsal Iconic - Switch-Grid, Vertical/Horizontal Mount, 1 Gang
+
3041C - Clipsal Iconic - Skin Switch Plate Cover, Vertical/Horizontal Mount, 1 Gang
For further information, please visit the below links:
https://www.clipsal.com/Trade/Products/ProductDetail?catno=40MIL
https://www.clipsal.com/Trade/Products/ProductDetail?catno=3041G
https://www.clipsal.com/Trade/search-results?q=3041C


What are the part numbers to make up a 4 gang switch with LED for the Iconic range?

The part numbers to make up a 4 gang switch with LED for the Iconic range are - 3044G , 40ML & 3044C

For further information visit links below:-
https://www.clipsal.com/Trade/search-results?q=3044G
https://www.clipsal.com/Trade/search-results?q=40ML
https://www.clipsal.com/Trade/search-results?q=3044C
User-added image

What is the part number for Iconic foxtel TV outlet?

The part numbers for Iconic Foxtel TV outlet are 3041G + 3041C-** + 40PFM-TN

3041G Clipsal Iconic - Switch-Grid, Vertical/Horizontal Mount, 1 Gang

3041C-WY Clipsal Iconic - Skin Switch Plate Cover, Vertical/Horizontal Mount, 1 Gang

Clipsal Iconic - TV Antenna Socket, 75 Ohm, F-Type

For further information see:https://www.clipsal.com/Trade/Products/ProductDetail?catno=3041G:https://www.clipsal.com/Trade/Products/ProductDetail?catno=3041C-WYhttps://www.clipsal.com/Trade/search-results?q=40PFM


Is 30N24 ,AC or DC rated??

They do both AC and DC.

The Clipsal 30M20 is discontinued, What is the alternative part?

The alternative part for the Clipsal 30M20 is the 30USM: Universal Rocker Switch, 1-Way/2-Way, 250VAC, 20A.

Show More
Exploded view of the Clipsal Iconic skins range; Styl, essence and Standard.

Range

Customisable and future-ready

Iconic is based around a unique, electrically safe grid plate, with a choice of three different skin designs that simply clip on top.

Once the grids have been installed by an electrician, it’s safe for anyone to change the skins at any time. Simply clip off the standard skins and clip on the new design.

Interchangeable standard, Styl and Essence skins provide great options to customise to suit specific decor and lifestyle.
