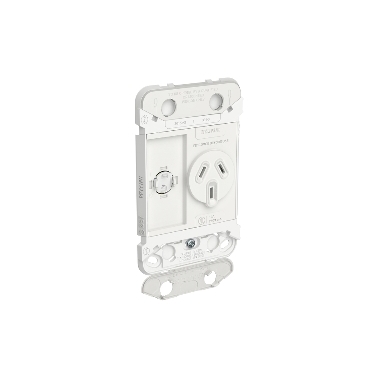

Clipsal Iconic Single Switch Power Point Grid Vertical Mount, 250V, 10A

Clipsal Iconic Single Switch Power Point Grid Vertical Mount, 250V, 10A

Clipsal Iconic Single Switch Power Point Grid Vertical Mount, 250V, 10A

Item Number: 3015VG

Build this product i

Retail
$38.42
RRP (Inc. GST)

The 250 V, 10 A Clipsal Iconic Single Switch Power Point Grid is engineered with safety in mind and with a flush vertical mounting.

Product Dimensions

Width icon

Width71 mm

Height icon

Height115 mm

Embedding depth icon

Embedding depth24 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Clipsal Iconic gridplate 3025-15G Front view
Clipsal Iconic 3025 grid rear view

Specifications

Design

Range

Clipsal Iconic

Product or component type

switched socket

Sustainable offer status

Green Premium product

Physical

Device presentation

mechanism with fixing frame

Outlet poles configuration

2P + E with shutter

Device mounting

flush

Number of power socket outlets

1

Number of rocker

1

Range compatibility

cover frame

Outlet standard

Australian

Outlet standard description

with earthing contact

Outlet standard

Australian/New Zealand

Ground lug position

straight 180° position

Fixing mode

by screw

Installation direction

vertical

Type of packing

polybag

Quantity per set

set of 10

Sale per indivisible quantity

1

Rated current

10 A at 250 V AC 50 Hz

Electrical durability

12000 cycles

Connections - terminals

3 screw terminals

Screwdriver shape

  • square drive no 1 (SQ1)
  • Philips No 2
    • Clamping connection capacity

    • 1 x 2.5...4 x 2.5 mm² for rigid cable(s)
    • 1 x 2.5...4 x 2.5 mm² for stranded cable(s)
    • 1 x 2.5...4 x 2.5 mm² for flexible cable(s)
      • Wire stripping length

        16 mm

        Height

        115 mm

        Width

        71 mm

        Depth

        31 mm

        Embedding depth

        24 mm

        Net weight

        0.082 kg

        Ambient air temperature for operation

        0-45 °C

        Relative humidity

        10-95 %

        Standards

        AS/NZS 3112

        Product certifications

        RCM

        REACh Regulation

        Free of Substances of Very High Concern above the threshold

        REACh free of SVHC

        Yes

        EU RoHS Directive

        Compliant

        Toxic heavy metal free

        Yes

        Mercury free

        Yes

        RoHS exemption information

        Yes

        China RoHS Regulation

         Pro-active China RoHS declaration (out of China RoHS legal scope)

        Environmental Disclosure

        ENVPEP120506EN

        Material

        Material

      • PC (polycarbonate): fixing frame
      • PP (polypropylene): rocker
      • POM (polyoxymethylene): shutter
        • Others

          Package 1 Height

          32 mm

          Package 1 Length

          72 mm

          Package 1 width

          150 mm

          Package 1 Weight

          86 g
          Show all specifications

          Frequently Asked Questions

          hide show

          What are the mounting centers for the 3015/4 quad outlet?

          ​The mounting centers for the 3015/4 quad outlet is 179.8mm.

          Do you have a single vertical outlet that is double pole?

          Yes,we do have  a single vertical outlets that are double pole. The part numbers are 2015VD-WE and C2015VD-WE.

          What is the mounting bracket to suit part number 3015/4?

          The part number is 3155H4 at this stage anticipated release is December 2016.

          What is part number for Iconic cover to suit 3015/4?

          The part number for Iconic cover to suit is 3015/4C.

          Does the Anthracite Skin for the 3015/4 come with Anthracite Dollies?

          Yes, the dollies are included and the same colour as the skin.

          For more information, please refer to the link:
          https://www.clipsal.com/Trade/Products/ProductDetail?catno=3015/4C-WY





          Is there a wall box to suit the Clipsal 3015/4 or PDL395H4 ICONIC quad outlet?

          The 3157/4PRM is a 54mm deep plastic wall box to suit ICONIC quad outlets.

          Clipsal Iconic - Moulded Plastic Wall Box to Suit Iconic Quad Socket with Sliding Recessed Nuts - Deep Type (54mm Depth)
          See link :https://www.clipsal.com/products/detail?CatNo=3157/4PRM&backto=/search?q=3157/4PRM&tab-document-1=0&itemno=3157/4PRM
          3157/4PRM

          The other flush mounting accessory option is a Clipsal 3155H4 or PDL155H4 which is a metal stud mount bracket.
          See link for more details:https://www.clipsal.com/products/detail?CatNo=3155H4&backto=/search?q=3155H4&tab-document-1=0&itemno=3155H4

          3155H4
