Clipsal Iconic Socket Switch Horizontal Single, 10A, 250V, Bulk Pack 40

Back to Single Switched Socket Home Switched Horizontal Single Switched Socket

Extra Vivid White | Clipsal Iconic Socket Switch Horizontal Single, 10A, 250V, Bulk Pack 40

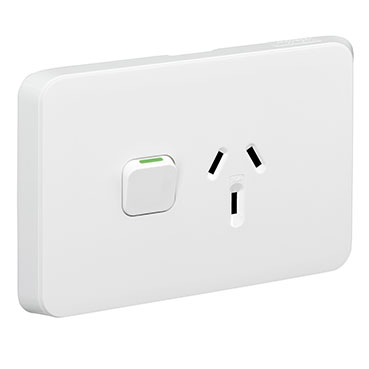

Clipsal Iconic Socket Switch Horizontal Single, 10A, 250V, Bulk Pack 40

Item Number: 3015BLK40-XW

Build your Iconic i

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all
Clipsal Iconic gridplate 3025-15G Front view
Clipsal Iconic 3025 grid rear view
Iconic Switched Socket Exploded View on Wall
Clipsal Iconic gridplate 3025-15G Front view
Clipsal Iconic 3025 grid rear view
Iconic Switched Socket Exploded View on Wall

Features

Always with protection in mind

  • Safety messages on the protective flaps clearly indicate they should only be opened by certified electricians

  • Protective flaps help prevent direct access to the screws after installation

  • Socket grids are safe when installed

  • All sockets come with internal shutters providing additional protection

  • Tapping pad for spirit level

  • Green indicator so you know when it is switched on

Features

Sockets With a Difference

  • Hole centre indicators for using a 57mm hole-saw for installations

  • Captive terminal screws to prevent them from coming out

  • 84mm mounting centres fit standard mounting accessories

  • Pre-mounted screws for faster fit off, O rings prevent screws dislodging during transportation

  • In-line terminals for easy screw access and faster termination

  • Slim 9mm profile blends in with the décor

Features

Sockets With a Difference

  • Metal plate for additional robustness

  • Large terminals accommodating up to 4 x 2.5mm cables

  • Clear cover showcasing the new Iconic terminal

  • Strip length indicator

  • Standard translucent edges allow the skin to infuse with the wall colour

  • Matte finish for a premium look and feel

Specifications

Design

Range of product

Iconic

Range

Iconic

Product or component type

switched socket

Colour tint

white (XW)

Sustainable offer status

Green Premium product

Physical

Device presentation

complete product

Outlet poles configuration

2P + E with shutter

Outlet standard

Australian

Device mounting

flush

Number of power socket outlets

1

Number of rocker

1

Range compatibility

Iconic

Outlet standard description

with earthing contact

Ground lug position

straight 180° position

Fixing mode

by screws

Installation direction

horizontal

Local signalling

without light indicator

Rated current

10 A at 250 V AC 50 Hz

Connections - terminals

3 screw terminals

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP120506EN

Others

Package 1 Bare Product Quantity

1

Outlet standard deviation

Australian/New Zealand

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

22.4 cm

Package 1 Width

26.1 cm

Package 1 Length

33.5 cm

Package 1 Weight

4400 g
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Technical Data Catalogues

  • Environmental Disclosure

Clipsal_Selection_Chart_Book
ZIP

Clipsal_Selection_Chart_Book

VERSION

1.0

DATE

24 Jan 2023

REVISION

-----

DOWNLOAD (ZIP) 1.9 MB
Electromechanical Sockets
ZIP

Electromechanical Sockets

VERSION

2.0

DATE

15 Sep 2023

REVISION

-----

DOWNLOAD (ZIP) 362.7 KB
Exploded view of the Clipsal Iconic skins range; Styl, essence and Standard.

Range

Clever. Customisable. Future-ready

Iconic is a modern electrical accessories range based on a slim, sleek, clean design that is easy to customise with innovative modular mechanisms and grids with changeable skins and rockers.

Iconic’s interchangeable standard, Styl and Essence skins offer great customisation to complement a specific decor or lifestyle.

Clipsal Sensor

Energy-saving features

Ideal for hands free lighting control in halls, WIR, pantries,etc. The light sensor stays on long enough to assist you, but not too long to waste energy.
Clipsal Iconic Pictogram

Pictograms

Iconic switches come with standard plain rockers but offers optional pictogram rockers to easily identify which switch is which.
Clipsal Iconic Essence 6 gang switch

Clipsal Iconic Essence

With smooth round wooden curves, its real timber finish set the benchmark for quality and style in residential products, enhancing any living space.
Clipsal Iconic Styl

Clipsal Iconic Styl

Irresistibly beautiful design made from durable anodised aluminum for a quality look in every home.
