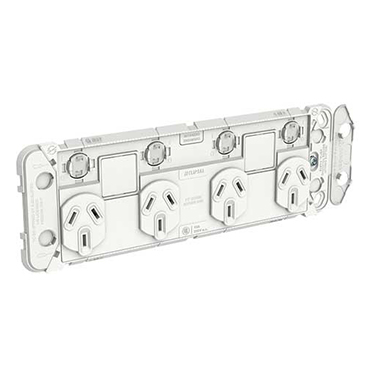

Clipsal Iconic Quad Switch Power Point Grid with 2 extra switches Horizontal Mount, 250V, 10A, Less Mechanisms

Clipsal Iconic Quad Switch Power Point Grid with 2 extra switches Horizontal Mount, 250V, 10A, Less Mechanisms

Item Number: 3015/4XXUAG

Build your Iconic i

Need four power points with two extra switch provisions? No problem. The Clipsal 10amp Iconic Quad power point grid features four switched outlets, as well as two additional switch provisions for lighting or exhaust fan controller. This grid only component is horizontally mounted and includes the mechanism with fixing frame.

Where To Buy

Datasheet

Download

Product Dimensions

Width icon

Width211 mm

Height icon

Height71 mm

Embedding depth icon

Embedding depth18 mm

See full specifications View cut out specs

Barcode

Qty UoM EAN Colour
-
-
-
See all
Clipsal Iconic gridplate 3025-15G Front view
Clipsal Iconic 3025 grid rear view
Iconic Switched Socket Exploded View on Wall
Clipsal Iconic gridplate 3025-15G Front view
Clipsal Iconic 3025 grid rear view
Iconic Switched Socket Exploded View on Wall

Features

Always with protection in mind

  • Safety messages on the protective flaps clearly indicate they should only be opened by certified electricians

  • Protective flaps help prevent direct access to the screws after installation

  • Socket grids are safe when installed

  • All sockets come with internal shutters providing additional protection

  • Tapping pad for spirit level

  • Green indicator so you know when it is switched on

Features

Sockets With a Difference

  • Hole centre indicators for using a 57mm hole-saw for installations

  • Captive terminal screws to prevent them from coming out

  • 84mm mounting centres fit standard mounting accessories

  • Pre-mounted screws for faster fit off, O rings prevent screws dislodging during transportation

  • In-line terminals for easy screw access and faster termination

  • Slim 9mm profile blends in with the décor

Features

Sockets With a Difference

  • Metal plate for additional robustness

  • Large terminals accommodating up to 4 x 2.5mm cables

  • Clear cover showcasing the new Iconic terminal

  • Strip length indicator

  • Standard translucent edges allow the skin to infuse with the wall colour

  • Matte finish for a premium look and feel

Specifications

Design

Range

Clipsal Iconic

Product or component type

switched socket

Colour tint

ash grey

Sustainable offer status

Green Premium product

Physical

Device presentation

mechanism with fixing frame

Outlet poles configuration

2P + E with shutter

Outlet standard

Australian

Device mounting

flush

Number of power socket outlets

4

Number of rocker

4

Range compatibility

Clipsal Iconic cover frame

Outlet standard description

with earthing contact

Ground lug position

straight 180° position

Number of gangs

2 gangs

Fixing mode

by screw

Installation direction

horizontal

Type of packing

polybag

Quantity per set

set of 1

Sale per indivisible quantity

1

Rated current

10 A at 250 V AC 50 Hz

Electrical durability

12000 cycles

Connections - terminals

3 screw terminals

Screwdriver shape

  • Philips No 2
  • square drive no 1 (SQ1)

Clamping connection capacity

  • 1 x 2.5...4 x 2.5 mm² for rigid cable(s)
  • 1 x 2.5...4 x 2.5 mm² for stranded cable(s)
  • 1 x 2.5...4 x 2.5 mm² for flexible cable(s)

Wire stripping length

16 mm

Height

71 mm

Width

211 mm

Depth

26 mm

Embedding depth

18 mm

Net weight

0.178 kg

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Standards

AS/NZS 3112

Product certifications

RCM

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP120506EN

Material

Material

  • PC (polycarbonate): fixing frame
  • PP (polypropylene): rocker
  • POM (polyoxymethylene): shutter
  • POM (polyoxymethylene): locking bar

Others

Package 1 Bare Product Quantity

1

Outlet standard deviation

Australian/New Zealand

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.3 cm

Package 1 Width

7.5 cm

Package 1 Length

23 cm

Package 1 Weight

171 g

Unit Type of Package 2

BB1

Number of Units in Package 2

5

Package 2 Height

150 cm

Package 2 Width

112 cm

Package 2 Length

330 cm

Package 2 Weight

0.986 kg

Unit Type of Package 3

PAL

Number of Units in Package 3

600

Package 3 Height

950 cm

Package 3 Width

1140 cm

Package 3 Length

1140 cm

Package 3 Weight

102.6 kg
