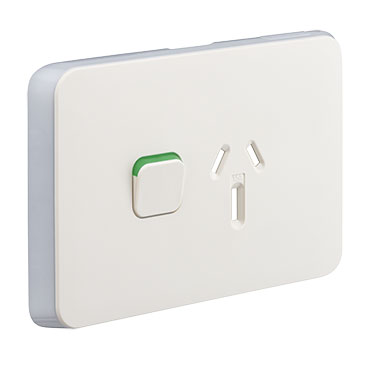

Clipsal Iconic Single Power Point Skin Horizontal Mount, 250V, 15A, Clip-On

Vivid White | Clipsal Iconic Single Power Point Skin Horizontal Mount, 250V, 15A, Clip-On

Clipsal Iconic Single Power Point Skin Horizontal Mount, 250V, 15A, Clip-On

Item Number: 3015/15C-VW

Build this product i

Retail
$12.46
RRP (Inc. GST)

The Iconic 15A Single Power Point Skin is available in a standard white skin or subtle colour variants. They are offered with a solid edge (Vivid White only) or translucent edges that infuse with wall colours.

Product Dimensions

Width icon

Width78 mm

Height icon

Height120 mm

Depth icon

Depth12 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Clipsal Iconic 3025 exploded view
3043G Rear Perspective
Socket exploded view

Specifications

Design

Range

Clipsal Iconic

Aesthetic name

Iconic

Product or component type

cover frame

Colour tint

vivid white (VW)

Product destination

switched socket

Surface treatment

untreated

Sustainable offer status

Green Premium product

Physical

Type of packing

polybag

Quantity per set

set of 20

Range compatibility

switched socket

Device mounting

flush

Number of rocker

1

Number of power socket outlets

1

[In] rated current

15 A

Installation direction

horizontal

Fixing mode

clip-on

Height

120 mm

Width

78 mm

Depth

12 mm

Net weight

0.02 kg

Ambient air temperature for operation

0-45 °C

Relative humidity

10-95 %

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP120506EN

Material

Material

  • PC (polycarbonate): skin
  • ABS (acrylonitrile butadiene-styrene): skin
    • Others

      Unit Type of Package 1

      PCE

      Number of Units in Package 1

      1

      Package 1 Weight

      21 g

      Package 1 Height

      12 mm

      Package 1 width

      78 mm

      Package 1 Length

      120 mm

      Unit Type of Package 2

      BB1

      Number of Units in Package 2

      20

      Package 2 Weight

      574.6 g

      Package 2 Height

      328 mm

      Package 2 width

      106 mm

      Package 2 Length

      146 mm

      Unit Type of Package 3

      CAR

      Number of Units in Package 3

      100

      Package 3 Weight

      3258.2 g

      Package 3 Height

      335 mm

      Package 3 width

      261 mm

      Package 3 Length

      335 mm
      Show all specifications

      Frequently Asked Questions

      hide show

      What is the threaded plug to suit clipsal SS15/15

      PDL56P315

      What is another option for a 15A version of the PDL 927P ?

      Could use the Clipsal SS15/15 with PDL 56P315

      Is there a 15A Surge protected outlet?


      To obtain a surge protected 15A outlet you will need to purchase a C2015/15X and a 30SFM and replace the extra switch in the outlet with the 30SFM surge protector mechanism and then wire accordingly.
      For some reason we have given the 30CSFM a 10A rating. The mechanism only needs to be rated for the correct voltage and correct fault current the amperage rating is irrelevant as this device does not have the load passing through it, it is there merely for fault conditions.

      What is part number for Iconic cover to suit 3015/4?

      The part number for Iconic cover to suit is 3015/4C.

      What is the mounting bracket to suit part number 3015/4?

      The part number is 3155H4 at this stage anticipated release is December 2016.

      Do you have a bracket for the 3015/4?

      Yes, you would use the 3155H4.

      For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=3155H4

      Range

      The Clipsal Iconic range is founded on a specialised electrically safe grid plate.
      Once installed by an electrician, it’s safe for anyone to change the skins at any time by simply clipping off the standard skins and snapping on a new design.

      Iconic’s interchangeable standard, Styl and Essence skins provide clever options tailored to suit a homes’ decor or family’s lifestyle.
