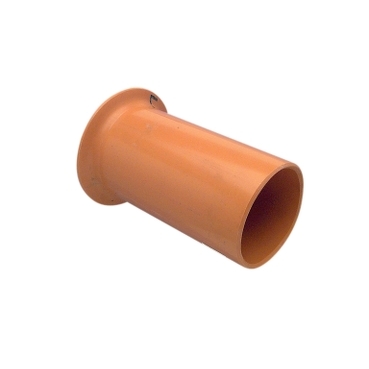

Conduit Coupling, Bell Mouth, Rigid, PVC, 150mm

Electric Orange | Conduit Coupling, Bell Mouth, Rigid, PVC, 150mm

Conduit Coupling, Bell Mouth, Rigid, PVC, 150mm

Item Number: 288/150-EO

Retail
N/A
RRP (Inc. GST)
Colour Electric Orange (EO)
  • Electric Orange 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Series 288

Product destination

diameter: 150-150 mm tube

Sustainable offer status

Green Premium product

Physical

Standards

AS/NZS 2053

REACh free of SVHC

Yes

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP100802EN

Material

Material

PVC (polyvinyl chloride)

Others

Package 1 Weight

0.001 kg
Show all specifications

Frequently Asked Questions

hide show

What is the length of the bell mouth 288/150


 The length is 290mm long.
please see following website for catalogue information as well as Technical specifications
https://www.clipsal.com/Trade/Products/ProductDetail?catno=288/150

What is the length of conduit bell mouth 288/50?

The length of conduit bell mouth 288/50 is 100mm.
For further information please visit
https://www.clipsal.com/Trade/Products/ProductDetail?catno=288/50
User-added image

Are the Clipsal Conduit Clips available in Electric Orange?

No, they are only available in grey.

This applies to the 280/16 (16mm), 280/20 (20mm), 280/25 (25mm), 280/32 (32mm), 280/40 (40mm) and 280/50 (50mm).

What is the part number for a 50mm female and 50mm male bush?

The part number for a 50mm female and 50mm male bush is - 281/50 & 281F50
For further information , visit link below:-
www.clipsal.com/Trade/search-results?q=281/50
https://www.clipsal.com/Trade/search-results?q=281F50
User-added image



How do I hardwire 10kva and 20kva transformers in a 208/120 or 240/120 environment

Issue:
Implementing a hardwire stepdown transformer in a 208v or 240v environment


Product Line:

Smart-UPS / Symmetra

Environment:

APTF10KT01, APTF10KW01, and APTF20KW01, All Serial Numbers

Cause:

Unbalanced UPS outputs require a stepdown transformer to power 120v loads


Resolution:

This document refers to installing  the APTF10KT01, APTF10KW01, and APTF20KW01 transformers in a North American 120/240 or 120/208 environment. For installations in other regions please consult the users manual.

The wiring block outputs are as follows:


For domestic use, make sure that the Terminal Block Jumper is installed between the Ground Terminal and Terminal 8 on the output wiring block, as illustrated on page 8 of the user manual. Please also make sure that the input voltage switch is in the correct position.

The step-down transformer provides 240/120 output as 2 120v hots, a neutral, and a ground. It provides 208v output as a 120v hot, an 88v hot, and a ground. The 120v hot (terminal  7) and the 88v hot (terminal 9) are 180 degrees out of phase. You will measure 208v from terminals 7 to 9. The step-down transformer is not able to provide 2 120v hots that are 120 degrees out of phase as you would see with utility power.



 Note: If your installation requires both 208v and 120v output power you will need 2 separate subpanels: a 240v/120v panel and a dedicated 208v subpanel.

Does 25/1510 have two separate connection for each outlet?

Yes this plate has a 15A and a 10A outlet and they are separately wired.
For further information please follow link below
https://www.clipsal.com/Trade/Products/ProductDetail?catno=25/1510
