RCD Protected Socket Outlet, 250V, 20A, Shaver, 30mA RCD

White Electric | RCD Protected Socket Outlet, 250V, 20A, Shaver, 30mA RCD

RCD Protected Socket Outlet, 250V, 20A, Shaver, 30mA RCD

Item Number: 2727RC30-WE

Retail
$869.44
RRP (Inc. GST)
Colour White Electric (WE)
  • White Electric 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Series 2000

Sustainable offer status

Green Premium product

Physical

Control type

ON/OFF button

Number of gangs

1 gang

Pin number

3

Number of power socket outlets

1

Actuator

  • switch
  • rocker
    • Mounting position

      horizontal

      Local signalling

      without light indicator

      [Ue] rated operational voltage

      250 V AC

      [In] rated current

      20 A

      Depth

      57 mm

      Length

      219 mm

      Width

      116 mm

      Fixing center

      84 mm

      REACh Regulation

      Free of Substances of Very High Concern above the threshold

      EU RoHS Directive

      Compliant

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

      Product out of China RoHS scope. Substance declaration for your information

      Environmental Disclosure

      ENVPEP120506EN

      Documents & downloads

      hide show
      Filter items
      • All

      • Product Brochures

      • CAD Files and Packs

      • Technical Data Catalogues

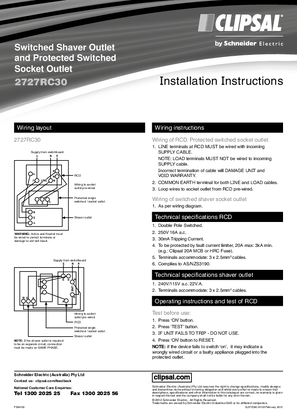

      • Installation Instruction

      • Certificates (MSDS)

      Frequently Asked Questions

      hide show

      Is the 2727RC30 available in the clasic series?

      No, unfortunately the 2727RC30 is not available in the classic series.

      Some of the key features are:
      • 2 pole
      • 30 mA residual current protected
      • 3 module size
      For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=2727RC30

      Does the 2025RC10 have safety shutters?

      No, the 2025RC10 does not have safety shutters.

      Some of the key features are:
      • Earth leakage switch with IFN 30 mA
      • Frequency rating: 50 Hz
      • typical trip time: 30ms

      For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=2025RC10

      Is the Clipsal RCD 2025RC10 available in Red, Blue and Beige

      Red is available as an indent, the other two colours are not set up for sale in NZ.  Need to use ML2025RC10-DB and ML2025RC10C-BG (engraved Cleaning Purposes
      Only)

      What is the part number for a replacement for 15/15/EL30?

      There is no direct replacement for this unit. Customer would be able to use 3 items to make this up - 2015/15 , 2031RC30 & 2000H2

      For further information , visit links below:-
      https://www.clipsal.com/Trade/search-results?q=2015/15
      https://www.clipsal.com/Trade/search-results?q=2031RC30
      https://www.clipsal.com/Trade/search-results?q=2000H2
      User-added image

      User-added image
      User-added image

      Does the outlet 2025RCD30 Protect upstream and downstream outlets?

      The outlet 2025RCD 30 will only protect downstream outlets see the below diagram.

      Where can I get support for APC and MGE Products?

      For support on APC and MGE products please visit:  https://www.apc.com/support/
