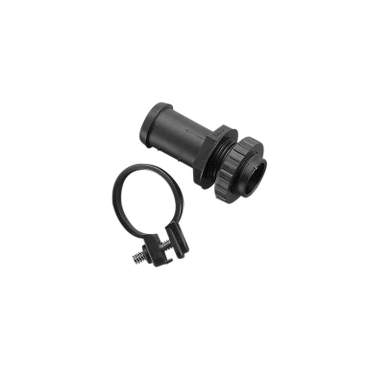

Flexible Conduit Terminators, Straight Terminators, 32mm

Black | Flexible Conduit Terminators, Straight Terminators, 32mm

Flexible Conduit Terminators, Straight Terminators, 32mm

Item Number: 269/32-BK

Retail
$72.72
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Series 269

Physical

Length

55 mm

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure

ENVPEP100802EN

Material

Material

plastic

Others

External diameter

32 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

13 g

Package 1 Height

13 mm

Package 1 width

75 mm

Package 1 Length

115 mm
Show all specifications

Frequently Asked Questions

hide show

Is part number 56/32 pad lockable?

Yes part number 56/32 can be pad lockable.

Are the Clipsal Conduit Clips available in Electric Orange?

No, they are only available in grey.

This applies to the 280/16 (16mm), 280/20 (20mm), 280/25 (25mm), 280/32 (32mm), 280/40 (40mm) and 280/50 (50mm).

What IP66 enclosure can be used for 30 series mechs?

Part no 56/32 has IP66 rating and can be used for

30 series mechs

What is the maximum rated AC current at AC voltage for the auxiliary contacts of C60.

The maximum rated AC Voltage and AC Current for the Category AC12 (IEC 60947-5) auxiliary contacts OF, SD, OF+SD/OF, OF.S (Reference - 26924, 26927, 26929, 26923) of C60 MCB is as below:


AC Voltage
AC Current
380…415V
3 A
220…240V
6 A


The maximum rated AC Voltage and AC Current for the Category AC15 (IEC 60947-5) auxiliary contacts OF special (Reference - 16940) of C60 MCB is as below:

AC Voltage
AC Current
220…240V
6 A
