Standard Series, Twin Switch Socket Outlet, 250V, 10A, Standard Size, Extra One Way Switch

White Electric | Standard Series, Twin Switch Socket Outlet, 250V, 10A, Standard Size, Extra One Way Switch

Standard Series, Twin Switch Socket Outlet, 250V, 10A, Standard Size, Extra One Way Switch

Item Number: 25X-WE

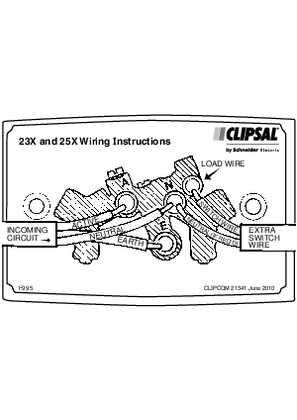

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Standard Series

Product or component type

switched socket

Product brand

Clipsal

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Control type

ON/OFF button

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Actuator

  • switch
  • rocker

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[Ue] rated operational voltage

250 V AC

[In] rated current

10 A

Depth

16 mm

Length

115 mm

Width

73 mm

Fixing center

84 mm

Standards

  • AS/NZS 3100
  • AS/NZS 3112
  • AS/NZS 3133
  • AS/NZS 3000:approval number S/1

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

RoHS exemption information

Yes

Environmental Disclosure

ENVPEP120506EN

Material

Material

PC (polycarbonate)

Others

Package 1 Bare Product Quantity

1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3 cm

Package 1 Width

7.3 cm

Package 1 Length

11.5 cm

Package 1 Weight

0.112 kg

Unit Type of Package 2

BB1

Number of Units in Package 2

5

Package 2 Height

11.7 cm

Package 2 Width

10.2 cm

Package 2 Length

13.8 cm

Package 2 Weight

0.634 kg

Unit Type of Package 3

CAR

Number of Units in Package 3

100

Package 3 Height

25.4 cm

Package 3 Width

34.8 cm

Package 3 Length

44.5 cm

Package 3 Weight

12.68 kg
Show all specifications

Frequently Asked Questions

hide show

Will the 41EPIRM fit in the 3025XA?

No, the 41EPIRM will not fit in the 3025XA.

Which steps should I take for installing and configuring my NEW APC Back-UPS?

Issue:

Which steps should I take for installing and configuring my NEW APC Back-UPS?

Product Line:

All APC Back-UPS product families.

Environment:

All models and serial number ranges.

Cause / Resolution:

1. I just bought a Back-UPS product how do I get started?
Locate the user manual and follow its installation instructions carefully.

2. What is the most common mistake when setting up a Back-UPS product?
All Back-UPS products ship with their batteries disconnected to conform with the department of transportation. All current Back-UPS products will still turn on with the internal battery disconnected, however they will also give a repetitive audible alarm and flashing icon until the internal battery is connected. Refer to the Back-UPS product's user manual for instructions on how to connect the battery.

3. How much equipment can I plug into the Back-UPS product?
All Back-UPS products have a watt rating that denotes the maximum wattage you can plug into the battery outlets and still have runtime during a power disturbance. Please refer to the user manual for this rating. If the rating is exceeded the Back-UPS product will be overloaded. Check your equipment nameplate and look for "true power" rating in watts "W" and compare it with UPS true power rating. It's always a best practice to connect loads with no more than 80% of it's full capacity to give way for possible inrush current on startup.

4. What is the difference between the "surge only outlets" and the "backup plus surge protection outlets"?
In the event of a power failure anything plugged into the "backup plus surge protection outlets" (assuming the watt rating is not exceeded see question #3) will be supported by the internal battery inside the Back-UPS product, where as the equipment plugged into the surge only outlets will just loose power. Surge only outlet is a straight through power path from the source to the output passing the surge protection circuit. This outlet will only provide output power if input power source is available.

5. How do I know what to plug in where?
This depends on the user. APC recommends that the Computer and monitor be plugged into the "backup plus surge protection outlets", and as for any other device you need to ask yourself "When power goes out do I need to….Insert device's function".

Example: You have a 15 inch monitor, a small desktop computer, a printer, a scanner, a cable modem, speakers and a USB hub.
- When power goes out do I need to Shutdown the computer gracefully? Yes, so this would go into the battery outlets.
- When Power goes out do I need to print from the printer? No, so the Printer would be plugged into the surge only outlets.
- When Power goes out do I need to Scan something? No, so the Scanner would be plugged into the surge only outlets.
- When Power goes out, can I afford to lose internet connection? No, so internet modems should also plugged in to the UPS.

And you would repeat this with the rest of the equipment. If it turns out you have more things that need a surge only outlet it is recommended that you purchase an APC surge arrest. And if you need more Battery Backup outlets it is recommended to purchase an addition APC Back-UPS product keeping in mind not exceeding the watt rating.

6. Now that I have the Back-UPS product set up how long do I have to wait before I can use my computer?
You can immediately use your computer after it has been set up. Yes the battery will need to totally charge but it can charge while you're using your system. We do recommend caution in the event that there is a power disturbance and the battery is depleted your system might drop. Please see your user manual for charging times.

7. Does the Back-UPS product charge its internal battery when it is turned off?
Yes, all Back-UPS products with charge the internal battery while powered off accept for the Back-UPS Office model BF250 and the Back-UPS ES model BE325XX.



Video: Where is the wiring diagram located and what information does it contain and where is the date code located on ALL the molded case circuit breaker enclosures?

Issue:
Product Design Features

Product Line:
Circuit Breaker Enclosures

Resolution:
NOTE: This information will generally apply to ALL the Molded Case Circuit Breaker Enclosures(The F-frame, B-Frame, H-frame, the J-frame, the L-frame, the M-frame and P-Frame). But for the video a J250S was used.




The wiring diagram on the circuit breaker enclosures will be located on, one of the inside sidewalls of the enclosure. All the necessary information for the enclosure will be on the wiring diagram and will contain the following;
1) Catalog and series number of the enclosure
2) What type of Circuit breakers that can be used
3) Any accessory that can be used in the enclosure, like the solid neutral and equipment ground kit
4) The UL listed catalog number Prefixes for the breakers that can be used in the enclosure
5) Maximum wire sizes for the enclosure(NOTE: Sometimes the breaker can accept larger wire, BUT the enclosure wire bending space will be limited to what the wiring diagram shows)
6) The Wiring schematics
7) The Short Circuit Current Rating information for each breaker at each voltage level
8) The Date code. The date code will be an ink stamp, generally located on the inside back wall of the enclosure. The Date Code will be a 5 or 6 digit code and will read as follows; first two digits = year, the 2nd two digits = week of the year, the 5th digit = the day of the week and the last digit(if used) = the shift. For example, 183241 is year - 2018, week of year -32, day of week - 4 and shift - 1. (Aug. 9th, 2018)

VIDEO - How to connect an ATV320 to a HMI to save the parameters of the drive?

The objective of this video is to show how to connect an ATV320 to a HMI unit to save the parameters of the drive
https://www.schneider-electric.com.au...

Is there a replacement for AK6COBAR25x5x2 & AK6COBAR30x10x2 ?

AK6COBAR25x5x2   - Copper Bars 25 x 5mm x 2m long, Permissible Current - 400A
AK6COBAR30x10x2 - Copper Bars 30 x 10mm x 2m long, Permissible Current - 630A

The copper bars forming the busbar are not part of the Linergy BZ offer. They are not supplied by Schneider now.

The selection depends on the maximum current needed for the installation.

Please see the below recommended busbar support characteristics.
Refer to the attached catalogue, page 4 & 5 for detailed information.
Linergy Busbar.png

What's the difference between a regular Home member, an Administrator and the Homeowner?

The Homeowner has access to all functions. Administrator has access to all functions except the ability to transfer the homeowner rights, delete the home and granting administrator rights to other members. A common member only has access to operate devices, receive notifications (alarm, moment/automation trigger, device added/removed and invite) from a home, configure device settings and schedules.

Show More
