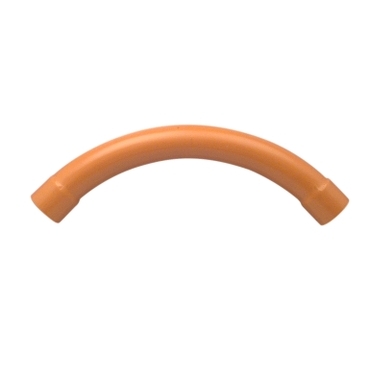

Conduit Bend, Large Sweep, 90Deg, PVC, 80mm

Electric Orange | Conduit Bend, Large Sweep, 90Deg, PVC, 80mm

Conduit Bend, Large Sweep, 90Deg, PVC, 80mm

Item Number: 247P80-EO

Retail
$191.96
RRP (Inc. GST)
Colour Electric Orange (EO)
  • Electric Orange 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Series 247P

Physical

Length

660 mm

Standards

AS/NZS 2053

REACh free of SVHC

Yes

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

PVC (polyvinyl chloride)

Others

Diameter

80 mm

Operating angle

90 °

Inner radius

550 mm

Package 1 Weight

1.52 kg
Show all specifications

Frequently Asked Questions

hide show

Are there Certificates of Conformity for the 247P100 and 262P100?

No. Unfortunately, there are not.

Video: How do I take off the top cover plate from an Altivar Process Drive?

Issue:
Altivar Process Drive top cover plate take off.

Product Line:
Altivar 630 and Altivar 930 Drives

Environment:
All serial numbers for Altivar 630 and Altivar 930 Drives

Cause:
N/A

Resolution:
To remove the top cover pull the cover from the back.



What is the difference between "THD" and "thd" measurements for PowerLogic and ION Meters

Issue:
User may notice that there are two different Total Harmonic Distortion measurements when looking at the modbus map for various PowerLogic and ION Meters

Product Line:
PowerLogic and ION Meters

Environment:
Harmonic Calculations

Resolution:

THD. Total Harmonic Distortion (THD) is a quick measure of the total distortion present in a waveform and is the ratio of harmonic content to the fundamental. It provides a general indication of the “quality” of a waveform. THD is calculated for both voltage and current. The power meter uses the following equation to calculate THD, where H is the harmonic distortion:




thd. An alternate method for calculating Total Harmonic Distortion, used widely in Europe. It considers the total harmonic current and the total RMS content rather than fundamental content in the calculation. The power meter calculates thd for both voltage and current. The power meter uses the following equation to calculate THD, where H is the harmonic distortion:







Are EasyPact MVS circuit breakers for sale in the USA or Canada?

Issue:
Where can I buy a EasyPact MVS breaker?

Product Line:
EasyPact MVS circuit breakers

Resolution:
There are no plans for a general release of the EasyPact MVS circuit breaker line in the US.
