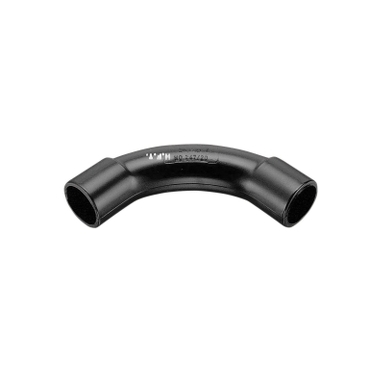

Conduit Bend, Solid, 90Deg, PVC, 20mm

Black | Conduit Bend, Solid, 90Deg, PVC, 20mm

Conduit Bend, Solid, 90Deg, PVC, 20mm

Item Number: 247HF20-BK

Retail
$53.20
RRP (Inc. GST)
Colour Black (BK)
  • Black 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Series 247

Physical

Environmental characteristic

halogen free

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Others

Diameter

20 mm

Operating angle

90 °

Package 1 Weight

19.55 g

Package 1 Height

43 mm

Package 1 width

22 mm

Package 1 Length

115 mm
Show all specifications

Frequently Asked Questions

hide show

What is the radius of part no 247PH100

Bend Radius for 247PH100 is 715mm

Are there Certificates of Conformity for the 247P100 and 262P100?

No. Unfortunately, there are not.

Is there a communication conduit in 247LH32 ?


 No - 45 deg large sweep bends come in orange as the standard colour.

For further information please visit https://www.clipsal.com/Trade/search-results?q=247lh32

How do I hardwire 10kva and 20kva transformers in a 208/120 or 240/120 environment

Issue:
Implementing a hardwire stepdown transformer in a 208v or 240v environment


Product Line:

Smart-UPS / Symmetra

Environment:

APTF10KT01, APTF10KW01, and APTF20KW01, All Serial Numbers

Cause:

Unbalanced UPS outputs require a stepdown transformer to power 120v loads


Resolution:

This document refers to installing  the APTF10KT01, APTF10KW01, and APTF20KW01 transformers in a North American 120/240 or 120/208 environment. For installations in other regions please consult the users manual.

The wiring block outputs are as follows:


For domestic use, make sure that the Terminal Block Jumper is installed between the Ground Terminal and Terminal 8 on the output wiring block, as illustrated on page 8 of the user manual. Please also make sure that the input voltage switch is in the correct position.

The step-down transformer provides 240/120 output as 2 120v hots, a neutral, and a ground. It provides 208v output as a 120v hot, an 88v hot, and a ground. The 120v hot (terminal  7) and the 88v hot (terminal 9) are 180 degrees out of phase. You will measure 208v from terminals 7 to 9. The step-down transformer is not able to provide 2 120v hots that are 120 degrees out of phase as you would see with utility power.



 Note: If your installation requires both 208v and 120v output power you will need 2 separate subpanels: a 240v/120v panel and a dedicated 208v subpanel.

Where can I get support for APC and MGE Products?

For support on APC and MGE products please visit:  https://www.apc.com/support/
