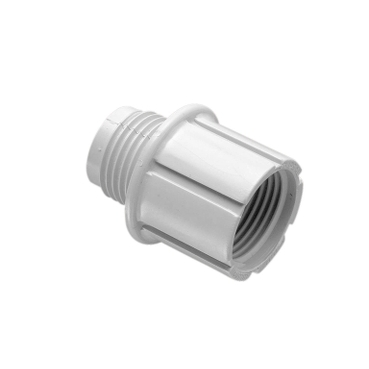

Solid Fittings - PVC, Screwed Converters, 1 Inch to 25mm

Grey | Solid Fittings - PVC, Screwed Converters, 1 Inch to 25mm

Solid Fittings - PVC, Screwed Converters, 1 Inch to 25mm

Item Number: 235S1/25-GY

Retail
N/A
RRP (Inc. GST)
Colour Grey (GY)
  • Grey 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Series 235S

Product destination

diameter: 25-25 mm tube

Sustainable offer status

Green Premium product

Physical

Connector type

thread connector

Length

40-40 mm

Standards

AS/NZS 2053

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP100802EN

Material

Material

PVC (polyvinyl chloride)

Others

Package 1 Weight

0.001 kg
Show all specifications

Frequently Asked Questions

hide show

Do you have 238-WE that can be used for Slimline outlets?

Yes, we do the part number is 238C/25.

What are the part numbers of slip type expansion couplings?

Slip Type Expansion Couplings are available from 16mm through to 50mm.The part numbers of slip type expansion coupling are as follows:
16mm = 251/16
20mm = 251/20 *
25mm = 251/25 *
32mm = 251/32
40mm = 251/40 *
* = only available in Grey
Where long conduit runs are likely to be exposed to wide variations in temperature, it is recommended that expansion couplings be used at each join. It is not recommended that Slip Type Expansion Couplings be used where the conduit run is exposed to the weather. Standard colour is Grey (GY).
Dimension details are attached.


What are the horsepower ratings on a LUB32 U Line motor starter?

10Hp at 200/208V, 10Hp at 220/240V, 20Hp at 460V and 25Hp at 575/600V.


CTA-ID : 2054125

Does Clipsal do a 238 with 25mm entries, top and bottom?

No we don't. The closest we get is the 238A/25 with one 25 entry on the top.

What is the thread type on a 1235/25?

The thread type on a 1235/25 is BS - British Standard.

For more information, please refer to the link:
https://www.clipsal.com/Trade/Products/ProductDetail?catno=1235/25
