Clipsal Resi MAX Meter Box Tasmania 21 Modules padlockable

Clipsal Resi MAX Meter Box Tasmania 21 Modules padlockable

Clipsal Resi MAX Meter Box Tasmania 21 Modules padlockable

Item Number: 230DRAT

Datasheet

Product Dimensions

Width icon

Width470 mm

Height icon

Height680 mm

Depth icon

Depth280 mm

Barcode

Qty UoM EAN Colour
-
-
-
Tasmania meter box
Tasmania meter box

Specifications

Design

Range

Resi MAX

Product or component type

meter box

Device application

  • metering
  • distribution

Physical

Provided equipment

  • fascia plate
  • DIN rail
  • earth and neutral grid assembly
  • enclosure

Function available

  • cable protection slide
  • clips lead retainer

Cable entry

knock-out rear and bottom

Width

470 mm

Height

680 mm

Depth

280 mm

IP degree of protection

IP23

Standards

AS/NZS 3000

EU RoHS Directive

Under investigation

Material

Material

iron (galvanised)

Others

Package 1 Bare Product Quantity

1

Enclosure/cubicle description

plain door enclosure

Targeted country

Australia

Targeted region

Tasmania

Enclosure mounting

  • surface
  • semi flush

Number of modules

21

Protection device type

miniature circuit breaker (MCB) - 63 A - 1P - 6 kA

Door type

ventilated removable door with door retainer

Door opening side

right

Lock type

padlockable

Protective treatment

epoxy powder coat

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

68.0 cm

Package 1 Width

47.0 cm

Package 1 Length

28.0 cm

Package 1 Weight

15.0 kg
Show all specifications

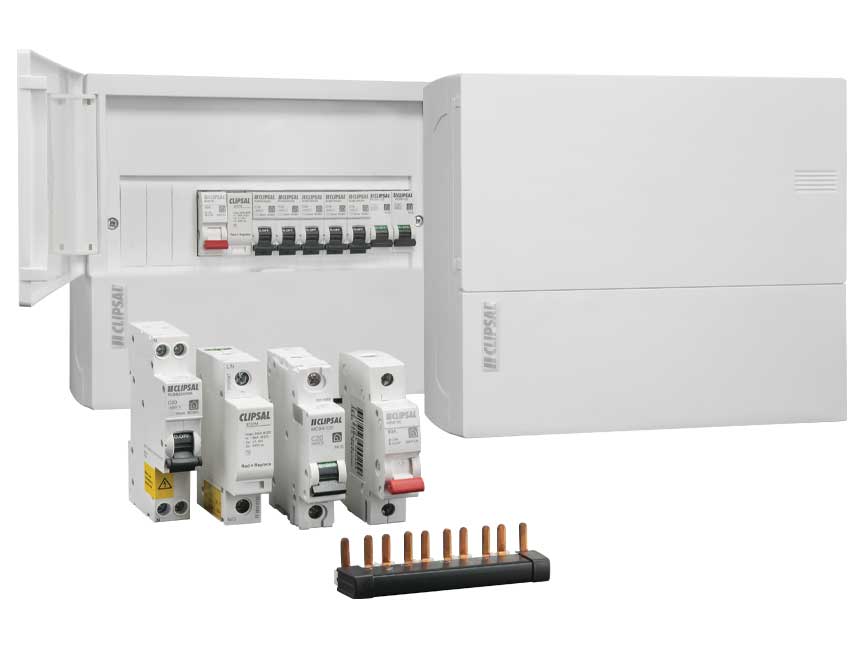

resimax range

Range

Resi MAX is a very simple range to cover essential circuit protection needs for  Australian homes. Resi MAX range helps to provide optimised solution for single phase applications with carefully chosen range of plastic enclosures, surge protection, miniature circuit breakers, isolator switch, RCDs and RCBOs.  Slim Comb busbars and accessories are also available to simplify the installation with SLIM RCBOs and help to improve installation speed by up to 10 times. Plastic enclosures in this range are optimised to provide the best balance of aesthetics, wiring space and value for money. Products in this range are must haves for each electrician's van as it helps to optimise installation costs without compromising on quality or performance. All Resi MAX devices provide full flexibility to the installer with the option of feeding them either from top or bottom side. All products comply to relevant Australian standards for complete peace of mind.
