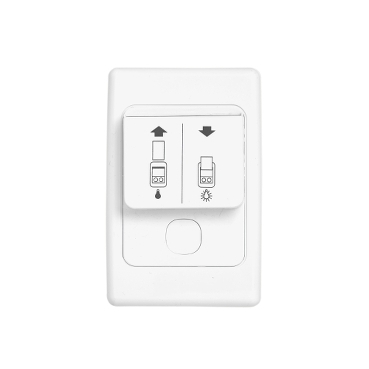

Room Access Card Operated Switch, 250VAC, 16A, Series 2000, with Neon Indicator

White Electric | Room Access Card Operated Switch, 250VAC, 16A, Series 2000, with Neon Indicator

Room Access Card Operated Switch, 250VAC, 16A, Series 2000, with Neon Indicator

Item Number: 2033CC1N-WE

Retail
$375.69
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Sustainable offer status

Green Premium product

Range of product

Series 2000

Product brand

Clipsal

Physical

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

EU RoHS Directive

Compliant

RoHS exemption information

Yes

Environmental Disclosure

ENVPEP120506EN

Mercury free

Yes

Device presentation

basic element with full cover plate

Switch function

  • 1-way
  • 2-way
    • Actuator

      room access card

      Local signalling

      without

      [Ue] rated operational voltage

      250 V AC

      Rated current

      16 A

      Marking

      without marking

      Others

      Package 1 Weight

      0.106 kg
      Show all specifications

      Documents & downloads

      hide show
      Filter items
      • All

      • Product Brochures

      • Installation Instruction

      • Certificates (MSDS)

      Frequently Asked Questions

      hide show

      What is the cover for a C2033CC1?

      The cover for a C2033CC1 is a C2033CCXC-BA.



      Can mechs in part number 2036CC3N be changed?

      Yes. Mechs cant be changed in part number 2036CC3N.

      What is the card for 2033cc1 credit card switch

      This is not done by clipsal but an outside contractor please  contact PLACARD in NSW on 02 9588 8200 Contact Helen Perente

      Can I purchase a replacement mechanism for the 2033CC & C2033CC credit card switches?

      Yes, a 2036VC-4-WE  16A mechanism would suit the 2033CC & C2033CC ving card switches.

      For further information please visit https://www.clipsal.com/Trade/search-results?q=2036VC-4-WE.

      Where can I purchase cards for the Card Switches, for example 2033CC1?

      As these cards are generally customised for users they are not supplied by us. They need to be sourced from companies that sell credit card sized cards, for an example CardsPrint - (08) 8132 2800

      2033CC1 Room Access Card Operated Switch, 250VAC, 16A, Series 2000
      The 2000 series keytag switches and room access card operated switches are the ideal form of energy management for hotels, motels and other locations where power can be left on unnecessarily. Inserting the keytag or card into the switch activates selected circuits to operate lighting, air-conditioning, television, radio and other appliances. Circuits to refrigerators and other equipment that needs to continually run are not connected to the switches. Removing the keytag or card automatically cuts off power to all of the circuits to significantly reduce power wastage. Several models are available in the range, including versions with neons. All Keytag and Room Access Card Operated Switches are 250V, except for the 6200KT.

      Some of the key features are:
      • Access card operated switches 2000 series
      • one way/Two way switch
      • 116 mm Length x 76 mm Width x 36mm Depth
      • 84 mm mounting centre
      • Card Dimensions – 85.60mm(W) X 53.98mm(H) X 0.80mm(D)
      For Further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=2033CC1



      What are the dimensions of the XALD02 enclosure?

      Issue:
      Checking the dimensions for the XALD02 enclosure

      Product Line:
      Push Buttons and Operator Interface

      Environment:
      Harmony Control Stations

      Resolution:
      It is 4.17 inches High, 2.68 inches wide and 2.09 inches deep.
