Flush Switches - 2000 Series, Architrave Size, Switch 3 Gang 250V 10A

Catalogue Number: 2033A
switch 3g arch 10a 250v
Colour: White Electric
Colour: Per UOM Std.
  • Black 1 PCE
  • Cream 1 PCE
  • White Electric 1 PCE
Added to cart

Specifications

hide show
Range of product
Series 2000
Product brand
Clipsal
Device presentation
basic element with full cover plate and grid
Switch function
1-pole
Actuator
rocker
Number of rocker
3
Number of poles
1
Device mounting
flush
Fixing mode
by screws
Material
PC (polycarbonate)
Surface finish
glossy
Local signalling
without
[Ue] rated operational voltage
250 V AC
Rated current
10 A
Marking
without marking
Sustainable offer status
Green Premium product
REACh Regulation
Reference contains Substances of Very High Concern above the threshold
EU RoHS Directive
Compliant
Mercury free
Yes
RoHS exemption information
Yes
China RoHS Regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
ENVPEP120506EN
Circularity Profile
N/A

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Technical Leaflet

  • Installation Instruction

  • Product Environmental

  • Operating Manuals

  • Specifications

  • Certificates (MSDS)

Frequently Asked Questions

hide show

Can you still get a 2033A in Desert Sand?

What is the part number for a mounting block to suit a C2033A?

Unfortunately there is no mounting block for this product.

Is there a mounting bracket for 2033 architrave switch?

There is not one available.

What is the part number for the Surround to suit a 2034A ?

The part number is a 2003/4-WE , this is the surround for both 3 and 4 gang architrave plates in the 2000 series
For more information please visit the Clipsal website on the link provided.
https://www.clipsal.com/Trade/search-results?q=2003/4
User-added image


Does Clipsal offer 5 gang architrave switch plate?

Unfortunately not. We do not have a 5 gang architrave switch plate. 4 gang is the biggest we make in architrave size and the part numbers are 2034A and 34A.
For further information, please visit
https://www.clipsal.com/Trade/Products/ProductDetail?catno=2034A​
https://www.clipsal.com/Trade/Products/ProductDetail?catno=34A





What is the replacement code for a Merlin Gerin 23332 ?.

The current equivalent is the A9R91440

What is the part number for a cover for a 3 gang switch in the Classic range , C2033?

The part number for a cover for a 3 gang switch in the Classic range , C2033 is - C2033C



Is it Possible to Upgrade a 1600A NW16 Breaker to a 2000A NW20 by Changing the Sensor Plug.

No. It is not possible. As per the attached document the NW16 have sensor rating only from 800 - 1600A, So a 2000A Sensor Plug is not suitable for NW16 Breaker. So it can not be changed.

Can I purchase a replacement mechanism for the 2033CC & C2033CC credit card switches?

Yes, a 2036VC-4-WE  16A mechanism would suit the 2033CC & C2033CC ving card switches.

For further information please visit https://www.clipsal.com/Trade/search-results?q=2036VC-4-WE.

Is there a mounting block available for a C2033?

No unfortunately we do not offer mounting blocks for this switch as it is designed to be mounted on the door frame.

Need a version of an XX930A1A1M12 sensor with a 2 metre range

Use a XX930A3A1M12 sensor. The range is adjustable between 203mm - 8m (use XXZPB100 to teach the sensor)

Can I get a cover for C2033 architrave switch?


Yes, there are covers available for the 3 gang architrave switches. The part number is C2003C.

Some of the key features are:
  • Identification cover
  • For architrave flush switch
For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=C2003C




What is the Pin out detail for the Modbus programming cable 110 XCA 20 3000?

The pin out details of the Modbus programming cable 110 XCA 20300 is as shown in the attached.



What is the data jacks that fits the Saturn 4032VH data plate

You will need to use the 4032VH plates and any Clipsal 30 Series data and AV mechs,
these plates will aslo fit any 30 series switch mech,
EG  30TV75M, 30PFM, 30HDMIA, VDIB17756U-we

What causes Concept error " 20630 - Module not found in SYSINFDB" ? )

SYSINFDB is a database within Concept containing information on I/O modules..
This error means that the 3rd party module .MDC file has not been loaded into Concept. This is done using Concept's Modconnect Tool.
These .MDC file can usually be obtained from the 3rd party manufacturer's web site.


Legacy KB System (APS) Data: RESL212811 V1.0, Originally authored by DaSo on 10/19/2013, Last Edited by DaSo on 10/19/2013
Related ranges: Concept

What is the part number for surround to suit 2030?

The surround to suit 2030 architrave is part number 2001.

Some of the key features are:
  • 1 gang
  • Architrave
  • Curved side

For further information please visit:
https://www.clipsal.com/Trade/Products/ProductDetail?catno=2001



Is ProWORX 32 supported on Windows Server 2003, 2008 or 2012 operating systems?

ProWORX 32 is not qualified to run on Microsoft Windows Server 2003, 2008 or 2012 operating systems.



Legacy KB System (APS) Data: RESL177093 V1.0, Originally authored by on , Last Edited by on
Related ranges: ProWORX

Why can't I get my Sy/Max 8020 SCP401 processor to work with floating point math?

The Sy/Max 8020 SCP401 processor does not support floating point math. The 8020 SCP423, SCP424, and SCP444 do support floating point math.


Note: The Sy/Max product line was obsoleted in 2013, contact your local distributor or local Schneider Electric sales office.

Does the L5504RVF have it's own power supply?

Yes it has a 200mA power supply..
For further information , visit link below:-
https://www.clipsal.com/Trade/search-results?q=L5504RVF
User-added image


What are the suggested product migration from XBTGT to HMIGTO targets?

Below is the Migration table to go from XBTGT to HMIGTO targets.

*Note : As a reminder, the highlighted XBTGT references will be obsolete at the end of June 2013. Migration to the GTO
for these references should be done as soon as possible. The other XBTGT part numbers has also been obsoleted as of
May 2018.


Customer product notice for the discontinuance of Alstom Grid relays

Schneider Electric will, as of June 1 2013, no longer offer the Alstom Grid relays. The customer notice is below, it also contains cross references to our new supplier:
Product Notice Alstom relays.pdfProduct Notice Alstom relays.pdf

Wiser Home Management Thermostat Documentation

Issue:
Installation and User Guides for Wiser Home Managment System Thermostats
EER56000,  EER56100,  EER58000

Product Line:
Wiser Home Management System

Environment:
Residential Single Family Home

Cause:
Solutions to many common questions can be found in the documentation.

Resolution:
User Guides and Installation Bulletins are attached.



What is the coil consumption or burden for the Tesys LC*D** contactors?

Issue:
What is the coil consumption or burden for the Tesys LC*D** contactors?

Product Line:
Tesys Contactors and Overload Relays

Environment:
All Products

Cause:
Product Features

Resolution:
All AC coils for the LC1D40 through LC1D80 3 or 4-pole contactors have an inrush of 200VA for 50 Hertz applications or 220VA for 60Hz.
Sealed values are 20VA for 50 Hertz applications or 22VA for 60 Hertz applications. For 50/60 Hertz coil inrush is 245VA and sealed is 26VA


CTA-ID : 2029994

What is the operating and storage temperature of the I range (iSW) switches.

There are two types of I range switch (iSW Switches) they have different properties and temperature ranges
The difference is the ISO Standard that the product is manufactured to comply with:
  • IEC/EN 60669
  • IEC/EN 60947-3
For 20-32A they comply with IEC/EN 60669
For 40-125A they comply with IEC/EN 60947-3

The operating temperature of I range switches is:-
  • For IEC/EN 60669 devices between - 20°C...+50°C without derating.
  • For IEC/EN 60947-3 devices -25...+60 °C without derating.

Their storage temperature must be:-
  • For IEC/EN 60669 devices between - 40...+100°C
  • For IEC/EN 60947-3 devices between -40...+85 °C

With Power Suite V1.5, I understand that the PS for Pocket PC can be installed for iPAQ 3800/3900. What about the newer series of iPAQs (eg 2200 and 5...

Goals and Symptoms

With Power Suite V1.5, I understand that the PS for Pocket PC can be installed for iPAQ 3800/3900. What about the newer series of iPAQs (eg 2200 and 5500)? Does the PS support this product series? Does it also work with Pocket PC 2003? Thank you.

Causes and Fixes

Powersuite v1.5 doesn't work under PC2003, for that you need to wait the V2 of Powersuite ( forecast end 2003 ) with Ipaq22xx in qualification.


Legacy KB System (APS) Data: RESL157567 V1.0, Originally authored by on , Last Edited by on
Related ranges: Other VVD PRODUCTS

After a graceful shutdown by PowerChute, Windows 2003, 2008, or 2012 system fails to turn on when utility power is restored.

Issue:
After a graceful shutdown by PowerChute,  Windows 2003, 2008, or 2012 system fails to turn on when utility power is restored.

Product:
PowerChute Network Shutdown
PowerChute Business Edition

Environment:
Windows 2003, 2008, 2012

Cause:
After a graceful shutdown by PowerChute Network Shutdown or PowerChute Business Edition, the server fails to turn on when utility power is restored. Due to changes in the power management feature in Microsoft® Windows Server 2003, 2008, 2012, some servers with an ACPI (Advanced Configuration and Power Interface) BIOS will not turn on when utility power is restored after an outage. The following is an example of what may occur:

1. A server is attached to an APC UPS and running PowerChute Network Shutdown or PowerChute Business Edition. PowerChute Network Shutdown or PowerChute Business Edition is configured to shut down the operating system when the UPS has been on battery for a specific time.

2. When the utility power fails, causing the on-battery event, PowerChute Network Shutdown or PowerChute Business Edition commands the operating system to shut down gracefully.

3. Because ACPI power management is controlled by the operating system rather than by the BIOS, when the operating system completes its graceful shutdown, it commands the server to turn off.

4. The UPS remains on battery until its shutdown delay time has expired. When utility power is restored, the UPS provides power; the server does not turn on.

Solution:

Upgrade the OS to include the latest Microsoft service pack.


Power Monitoring Expert 7.2 - After upgrade to PME 7.2 I can't run or edit my saved RepGen reports

Issue
When editing or saving a report in Repgen you will see a “Connection failed” screen like the following:



Manually entering the "Report" login with password "rep0rter!" allows you to edit the report.  However, the next time you edit the same report, Reporter will prompt you for the same connection information.

Also, you will see an “*ERROR* Error 3704” message in Reporter when you try to run a report that had been previously saved.

You will see this issue if you upgraded to PME 7.2 from older versions of the software (e.g. SPM 7.0, SPM 7.0.1) and kept the same SQL Server instance and ION databases in place.

Product Line
Power Monitoring Expert 7.2.x

Environment
Repgen, Reporter

Cause
The password for the “Report” login that is used to connect to SQL Server in order to retrieve data for Reporter reports has changed.  As a result, when upgrading to PME 7.2 from a previous version of the software, you will see errors when trying to edit or generate previously-saved reports

Resolution
Change the “Report” login password in SQL Server to “rep0rter!”  This will allow all new reports generated in PME 7.2 to run properly.  You will be able to edit reports without the Connection Info dialog popping up.

If you are using reports from your previous version of the software in PME 7.2, you will also have to edit them manually to change the stored login information to “Report”/ “rep0rter!”

  • Open the report in Excel.
  • Unhide the |PRIVATE|Datasheets worksheet.
    • Excel 2003:
      • From the menu, choose Format -> Sheet -> Unhide.
    • Excel 2007 / 2010:
      • Right-click on any sheet and choose “Unhide” from the popup menu that appears.
      • Choose the |PRIVATE|Datasheets sheet and click OK.
  • Ensure the USERID and PASSWORD columns contain "Report" and "rep0rter!"
  • After making the changes, hide the sheet |PRIVATE|Datasheets again.
    • Excel 2003:
      • Select the sheet.
      • From the menu, choose Format -> Sheet -> Hide.
    • Excel 2007 / 2010:
      • Right-click on the sheet and choose “Hide” from the popup menu that appears.
  • Save and close the file.


The report can now be edited and generated without issues.

How to power a Xantrex System Control Panel when no XW+ or SW is present?

When using a Xantrex System Control Panel, this unit is powered from either an XW+ or an SW hybrid inverter.

When in a situation that either one of these hybrid inverters are not available, to get the SCP to operate, you will need to provide an independant 15V DC 200mA supply to the Xanbus network.

+ve should be connected straight to pins 1,2 and 7. -ve should be connected to 3, 6 and 8.

Do you have a energy or power monitor available?

Yes, the part number is EM422EM-E-KMTS.
Some of its key features are:

  • Mains Operated
  • Frequency: 433.5 MHz
  • Transmission Time: 6s. 12s. or 18s
  • Transmission Range: 40 m
  • Voltage Range: 110V-400 V
  • Measuring Current: 50mA-95A
  • Accuracy: ≥ 50mA but ≤ 200 mA: ± 80% at 25 deg C, > 200mA but ≤ 20A: ± 90% at 25 deg C, > 20A but ≤ 90A: ± 95%


For futher information please see attachment.

Or visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=EM422EM-E-KMTS




What is the part number for a 8 channel leading edge C-Bus dimmer?

The part number for a 8 channel leading edge C-BUS dimmer is L5508D1A.
Some of the key features are:
  • 8 channel Leading Edge
  • 12M DIN modules wide
  • 8 channels of 1A rating
  • suitable for incandescent and low voltage lighting
  • software selectable network burden and C-Bus system clock
  • inbuilt 200mA C-Bus power supply
  • C-Bus Learn Enabled
  • Single Phase
  • Connection: 2 x RJ45 sockets
For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?CatNo=L5508D1A




What is the difference between L5508RVFP and L5508RVF?

L5508RVFP and L5508RVF are C-Bus DIN Rail Mounted Relay Units, 250V AC 10A 8 Channel, 12M modules wide. The only difference between the two is L5508RVFP does not come with C-Bus Power Supply and L5508RVF is with 200mA C-Bus internal Power Supply.
For further information, please visit:
https://www.clipsal.com/Trade/Products/ProductDetail?catno=L5508RVFP
https://www.clipsal.com/Trade/Products/ProductDetail?catno=L5508RVF

User-added image
User-added image

What is the replacement for the CentaMeter?

The replacement for the centameter is the CPLEM422EM-E-KMTS.

Key Features

  • Battery Operated
  • Frequency: 433.5 MHz
  • Transmission Time: 6s. 12s. or 18s
  • Transmission Range: 40 m
  • Voltage Range: 110V-400 V
  • Measuring Current: 50mA-95A
  • Accuracy: ≥ 50mA but ≤ 200 mA: ± 80% at 25 deg C, > 200mA but ≤ 20A: ± 90% at 25 deg C, > 20A but ≤ 90A: ± 95%

What is the maximum current that can be delivered from the internal 24 volt power supply on Lexium 28?

The internal 24 volt power supply can provide a maximum of 200ma at 24vdc (available at pin 17 of the 50 pin signal connector CN1)
This 24 volt source is provided as a means to supply I/O switches and or proximity switches that are connected to the inputs of LXM28


Rev 8-1-18


How many simultaneous Webreach Connections can access the Server?

For non-server operating systems (IE: WinXP) 10 Webreach connections can be gathering data.
For Server Class operating systems (IE: Windows Server 2003) the number of connections is only limited to BandWidth. So effectively unlimited connections can be made.





Original article#16715

Last Revised: May 29 2007

Public

All content © 1992-2007 Schneider Electric


Legacy KB System (APS) Data: RESL186620 V1.0, Originally authored by KBAdPM on 07/06/2007, Last Edited by KBAdPM on 07/06/2007
Related ranges: ION Enterprise V5.6, ION Enterprise V5.5, ION Enterprise V5.0, ION Enterprise V4.5

What is the standard of PoE (Power over Ethernet) adopted on EGX devices?

Product Line
EGX100
EGX300

Resolution
The Power over Ethernet (PoE), IEEE802.3af, is deployed on the EGX100 and EGX300 devices.

The IEEE 802.3af PoE standard (ratified June, 2003) provides up to 15.4 W of DC power at 44~57 V DC (though the nominal voltage is 48 V) and 10~350 mA to each device.
Only 12.95 W is assured to be available at the powered device as some power is dissipated in the cable.

There is another new version for PoE, IEEE802.3at-2009, sometimes called "POE+", (ratified September 11, 2009), provides up to 25 W of power. Except the Power Output, the voltage and current output are the same as IEE 802.3af. As of 7/1/2015 the EGX only supports IEEE802.3af.

What third party products are supported by the APC Netbotz SNMP Crawler?

"The APC Netbotz product range has SNMP crawler support for APC products, MGE products, as well as third party manufacturers. Listed below are major manufacturers supported by the SNMP crawler with a list of common supported products broken down by manufacturer below.

APC
Alcatel
Avaya
Best Power
Cisco Systems
Compaq
DMTF
Dell
Extreme Networks
Foundry Networks
IBM
Juniper Networks
Liebert
MGE
MIB2-UPS
Mitsubishi
NetBotz
Powerware
Sun Microsystems

Liebert

Info from: https://www.liebert.com/dynamic/displayproduct.asp?id=921&cycles=60hz
And https://www.liebert.com/products/english/products/site/com_nic/comp.asp

UPS
AP 200 UPS
Series 300/301 UPS
AP 4300
Series 600 System Control Cabinet
Series 600 Single Module System UPS
UPStation D/Select UPS
UPStation G/GX/GRT/Gold
UPStation GXT
PowerSure Interactive
UPStation S UPS
UPStation S3 UPS
NPower
Hiross 7200 (Italy)
Hiross HiPulse (Italy)

Environmental Products
Deluxe System 3
Challenger
MiniMate 2
Level 00/05/10/15
Himod

3-Phase Power
DataWave
Static Switch
Static Switch 2


MGE

Pulsar Evolution
Pulsar EX
Pulsar EX RT
Comet EXtreme
Comet EXt RT
Comet 3000
Comet S31
Galaxy
Galaxy 1000 PW
Galaxy 3000
Galaxy 4000
Galaxy PW Harmony
Galaxy PW
EPS 6000
EPS 8000


Eaton Powerware

Info from: https://www.powerware.com/ups/connectivity/connectups_snmp.asp
And https://www.powerware.com/ups/connectivity/ConnectUPS_SL_SNMP.asp


Powerware 9155
Powerware 9315
Powerware 5119
Powerware 9 Prestige
Powerware 9150


Mitsubishi UPS
Info from: https://www.meau.com/eprise/main/sites/public/PRODUCTS/Uninterruptible_Power_Supplies/NetCom/default

2033A Series
2033C Series
2033D
7011A Series (1kVA to 3kVA, 6kVA to 12kVA)
9700 Series
9800D Series

Best
Info from: https://www.powerware.com/UPS/BestPower/Products.asp

Fortress
Patriot Pro
FERRUP
Best Power 610"

What are the secondary-injection test kits for Micrologic circuit breakers?


Product Line:
Legacy, Powerpact, and Masterpact circuit breakers

Resolution:
The secondary injection test kit for Legacy Micrologic (Micrologic Series B) breakers is the UTS3.
The Full Function Test Kit  (FFTK) for Powerpact M, P, R frame and Masterpact circuit breakers with electronic or Micrologic trip units is S33595.
The Hand Held Test Kit (HHTK) for Powerpact M, P, R frame and Masterpact circuit breakers with electronic or Micrologic trip units is S33594.
The UTA tester for testing Powerpact H, J, Lcircuit breakers is STRV00910.
The Pocket Tester for testing Powerpact H, J, Lcircuit breakers is S434206.
The Universal Test Kit for testing Legacy Micrologic (Micrologic Series B) trip units is UTS3.
The test kit for testing Masterpact and Compact circuit breakers with STR trip units is 55391.


On the Altivar drives, in CiA402 profile, what sequence is written to run drive in Reverse?

Issue:
On the Altivar drives, in CiA402 profile, what sequence is written to run drive in Reverse?

Product LIne:
Altivar drives with serial communication control in CiA-402 (Drivecom) Mode of operation.

Environment:
All current production models with the exception of the ATV212 series, all serial numbers

Cause:
To issue a run command forward in CiA402 profile, you must write the sequence 6,7,15 to the command word.  What sequence should be written to run reverse?

Resolution:
In order to run, Bits 0-3 must be all high, this translates to decimal value of 15.  Bit 11 of the control word determines the direction of the the drive.  When bits 0,1,2,3 are high  (decimal 15) the drive runs in Forward direction.  When bits 0,1,2,3,11 are high (decimal 2063) the drive runs in Reverse direction.

What is alarm 47 on the Series 2000 Circuit Monitor (CM2000)?

Issue:
A CM2000 series circuit monitor is displaying alarm code 47 on the front display.

Product Line:
CM2000 Series Circuit Monitor

Environment:
Onboard Alarms

Cause:
Alarm code 47 is defined as "Suspended Sag/Swell". The alarm is to identify an excessive number of Sag/Swell events being generated on the meter.

An "excessive number" of Sag/Swell events is defined as:
More than 48 events total from all Sag/Swell Alarms in any 500ms period, or more than 6 events from any single Sag/Swell Alarm in any 500ms period.

Alarm code 47 is active when event 47 is true which occurs when register 2038 on the meter is not equal to zero.  If the user disables alarm 47 without clearing Register 2038, the alarm will immediately be re-enabled and asserted as true.

Resolution:
To clear alarm 47, write a 0 to register 2038.

To learn how to read and write registers using the front panel of the CM2000 series meter, please refer to KB article FA211912
To learn about other CM2000 alarm codes, please refer to the KB article FA218966.



Smart-UPS Stacking Height Limitations

This document describes the acceptable stacking configurations of Smart-UPS products.  To achieve the minimum possible footprint, these products can be stacked following the guidelines below. It is important to consider the effect of extra weight on any raised floor environments.

SU Products:

 The UPS and batteries can be stacked 25.5"" high. Possible configurations include:

3 SU48XLBPs stacked together
1 SU2200XL on bottom, 1 SU48XLBP on top


SURT Products:

1KVA to 10KVA SURT units are not designed to be stacked, but rather should be connected in a tower configuration as indicated in the users manual.
15KVA and 20KVA units may be stacked to a total height of not more than 18U, which would be a main UPS enclosure and 2 battery enclosures.



How to run the inverter when one of the matrices might have an issue?

Issue:
Ground fault fuse blown, fault 0033.

Product Line:
GT250

Environment:

Cause:
One of the matrices might have a short.

Resolution:
You need to isolate the matrices to see which one is bad.
Step 1. Turn the inverter ON\OFF switch to Off.
Step 2. Hit the menu button and then hit enter. It will ask for a password. Type in 594 and hit enter. Press the up arrow button on the keypad until the display shows I PPT Max %. Once there, hit the enter button and type in 50 instead of 100. Then press enter. Press the up arrow button once and then the down arrow once to confirm the I PPT Max % is in fact 50.
Step 3. Remove the DC input cables to the cap bank (left matrix) and all 6 orange cables from the left matrix. Tie wrap these cables so that they do not touch each other or anything on the inverter.
Step 4. Run the inverter by turning the ON\OFF switch to ON.
Step 5. If the ground fault fuse is blown, replace the fuse and put all the cables back on the left matrix. Repeat this process on the right matrix. If the ground fault fuse is not blown then it is possible that the left matrix or the left inductors have an issue.
Step 6. Call 866-519-1470 selection option 3 and 3 and open a new case. Tell the technical support person what you have checked so far.

Power Monitoring Expert 8.2 - When I run Report Generator (RepGen) from either an Engineering or Reporting Client, choosing 'Manage' causes a run-time error

Symptoms:
I launch Report Generator (the Excel-based reporting tool) on either an Engineering Client or a Reporting Client.
I choose the 'Manage Reports' radio button, and select any report.
At this point, an error dialog appears with the following text:

Run-time error 91:
Oject variable or With block variable not set


Workaound:
This will only happen if RepGen is run from either and Engineering or Reporting client and the version of Excel used is a newly installed x86 (32 bit) version of Excel 2013. The 64-bit version will work fine, as will the 32-bit versions of Excel 2007 and Excel 2016, as will using any  version of Excel and running RepGen on the server.



What are the C-BUS Relay part numbers?

You have several options for relays, Catalogue numbers and information below.

L5504RVF, L5504RVFP** - 4 Channel voltage free relay - 10amps per channel
L5508RVF, L5508RVFP** - 8 Channel voltage free relay - 10amps per channel
L5512RVF, L5512RVFP** - 12 Channel voltage free relay - 10amps per channel

L5504RVF20, L5504RVF20P** - 4 Channel voltage free relay - 20amps per channel

L5508RELVP - 8 Channel Extra Low Voltage Relay

5101R - Single and Two Channel 250v AC 10amp relay
5102RVF - Single and Two Channel 250v AC 10amp Voltage Free Relay

** Any part number that has a 'P' after the part number for Din Rail mount units does NOT include a C-Bus 200ma Power Supply.

Is there a 12 channel, universal dimmer relay, with power supply available?

No, unfortunately there isnt a 12 channel, universal dimmer, with power supply. However, a 4 channel, universal dimmer relay, with power supply is available. The part number is L5504D2U. 3 of these would be required to make up your 12 channels.

Some key features are:

  • 4 channel Leading Edge/Trailing Edge
  • 12M DIN modules wide
  • 4 channels of 2.5A rating
  • Suitable for low voltage electronic transformers, incandescent lamps and low voltage lamps with iron core transformers
  • Automatic load sensing
  • Software selectable network burden and C-Bus system clock
  • inbuilt 200mA C-Bus power supply
  • C-Bus Learn Enabled
  • For use with Leading Edge or Trailing Edge compatible low voltage transformers
  • 215 mm x 85 mm x 65 mm

For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=L5504D2U

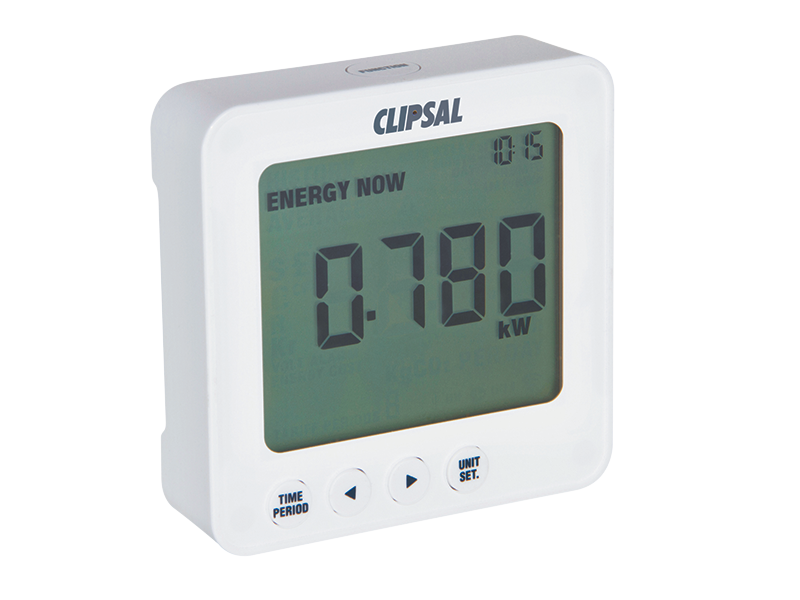

What is the part number for a Power monitor which is battery operated?

The part number is the EM422EM-E-KBTS.

Edition 92 Trade Product Guide Page # 127

Key Features

  • Battery Operated
  • Frequency: 433.5 MHz
  • Transmission Time: 6s. 12s. or 18s
  • Transmission Range: 40 m
  • Voltage Range: 110V-400 V
  • Measuring Current: 50mA-95A
  • Accuracy: ≥ 50mA but ≤ 200 mA: ± 80% at 25 deg C, > 200mA but ≤ 20A: ± 90% at 25 deg C, > 20A but ≤ 90A: ± 95%
For further information please visit www.clipsal.com/Trade/Products/ProductDetail?catno=EM422EM-E-KBTS

Is part number L5504D2U suitable for dimming LED?

Yes. The L5504D2U is suitable for LED dimming.

Key Features

  • 4 channel Leading Edge/Trailing Edge
  • 12M DIN modules wide
  • 4 channels of 2.5A rating
  • Suitable for low voltage electronic transformers, incandescent lamps and low voltage lamps with iron core transformersl
  • automatic load sensing
  • software selectable network burden and C-Bus system clock
  • inbuilt 200mA C-Bus power supply
  • C-Bus Learn Enabled
  • for use with Leading Edge or Trailing Edge compatible low voltage transformers
  • 215 mm x 85 mm x 65 mm
for more information, please visit:https://www.clipsal.com/Trade/Products/ProductDetail?catno=L5504D2U



I can’t find the Project DBF Add-In tool of PowerLogic SCADA in my MS Excel 2003.

First, you need to check whether the tool has been installed well or not.

     1. Find the tool from Add or Remove Programs of Control Panel as below.



         If you cant, you need to install that component from your PowerLogic SCADA CD.



     2. If you can find the tool there, you need to go to MS Excel to check other property.

         Go to Help à About Microsoft Office Excel



         And then Click Disabled Items below.



 If you can find the DBF Add-In item at the Disabled Items window below, you need to enable it.



---

Last Revised: 22-July-2009

Applies To: PowerLogic SCADA 7.1

Original Author: YJ

Published By: DRM

Public

All content © 1992-2009 Schneider Electric


Legacy KB System (APS) Data: RESL199485 V2.0, Originally authored by KBAdPM on 07/28/2009, Last Edited by DaMi on 07/31/2009
Related ranges: PowerLogic SCADA 7.1

Is ION Enterprise 5.6 supported on Windows Vista?

For an ION Enterprise 5.6 server installation, the only supported operating systems are Windows XP or 2003, as stated in the Commissioning Guide. Our ION software has not yet been formally tested with Windows Vista, thus full support can not be provided for Windows Vista installations.

Last Revised: March 4, 2008
Applies To: ION Enterprise 5.6
Original Author: KG
Public
All content © 1992-2008 Schneider Electric


Legacy KB System (APS) Data: RESL191337 V1.0, Originally authored by KBAdPM on 03/04/2008, Last Edited by KBAdPM on 03/04/2008
Related ranges: ION Enterprise V5.6

OFS / Windows Operating System Compatibility

OFS V3.50 is compatible with the following Windows platforms (2000, XP, Vista, Server 2003, 7, Server 2008, Server 2008 R2, 8, Server 2012).

Up to OFS V3.34, OFS is compatible with Windows 32 bits only.
From OFS V3.35, OFS is compatible with Windows 64 bits including Windows 7.
From OFS V3.40, OFS is compatible with Windows Server 2008 and Windows Server 2008 R2.
From OFS V3.50, OFS is compatible with Windows 8 and Windows Server 2012.


See attached an extract of the OFS V3.50 documentation regarding the minimum Drivers version (chapter 'Driver installation' , p.42).

Note : OFS is supposed to follow the evolution of the Operating System.
So, except a big technical issue, e.g. OFS V3.60 is planned to be compatible with Windows Server 2012 R2.

Is there any Xantrex support in New Zealand ?

For Xantrex branded products, they are supported locally by Xantrex's authorized distributor, Advance Trident.

Advance Trident ltd (ATL)
173 Marua Road
Mt Wellington, Auckland 1051
PO Box 4174
Shortland St
Auckland 1140
New Zealand
Phone      +64 9 845 5347 ext 2
Head Office Sales:
+64 9 845 5347 | South Island Sales: +64 27 449 0033

Note:  Although Xantrex is owned by Schneider, they treat it separately.  That's why they have an authorized distributor in NZ.


Show More
