Clipsal 2000 Series Single Switch Socket Outlet 250V, 10A, 2 Removable Extra Switch, White Electric

White Electric | Clipsal 2000 Series Single Switch Socket Outlet 250V, 10A, 2 Removable Extra Switch, White Electric

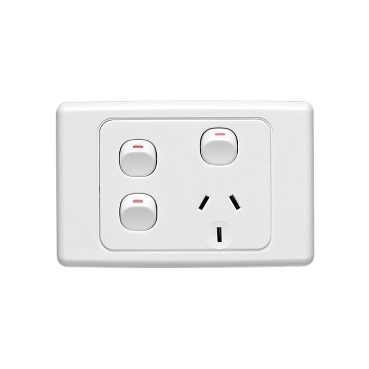

Clipsal 2000 Series Single Switch Socket Outlet 250V, 10A, 2 Removable Extra Switch, White Electric

Item Number: 2015XX-WE

Retail
$99.61
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Sockets
Socket in kitchen

Specifications

Design

Range of product

Series 2000

Product or component type

switched socket

Product brand

Clipsal

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Control type

ON/OFF button

Number of gangs

1 gang

Pin number

3

Number of power socket outlets

1

Actuator

  • switch
  • rocker
    • Mounting position

      horizontal

      Fixing mode

      by screws

      Local signalling

      without light indicator

      [Ue] rated operational voltage

      250 V AC

      [In] rated current

      10 A

      Depth

      12 mm

      Length

      120 mm

      Width

      76 mm

      Fixing center

      84 mm

      Standards

    • AS/NZS 3100
    • AS/NZS 3112
    • AS/NZS 3133:approval number S/1
      • REACh Regulation

        Reference contains Substances of Very High Concern above the threshold

        EU RoHS Directive

        Compliant

        Mercury free

        Yes

        RoHS exemption information

        Yes

        China RoHS Regulation

        Product out of China RoHS scope. Substance declaration for your information

        Environmental Disclosure

        ENVPEP120506EN

        Material

        Material

        plastic

        Others

        Unit Type of Package 1

        PCE

        Number of Units in Package 1

        1

        Package 1 Weight

        118 g

        Package 1 Height

        25 mm

        Package 1 width

        75 mm

        Package 1 Length

        115 mm
        Show all specifications

        Documents & downloads

        hide show
        Filter items
        • All

        • Product Brochures

        • CAD Files and Packs

        • Technical Data Catalogues

        • Technical Leaflet

        • Specifications

        • Certificates (MSDS)

        Frequently Asked Questions

        hide show

        What is the PDL version of the 2015XX?

        The PDL version of the 2015XX is a PDL694XXWH.



        Can part number 2015X accommodate TV mech?

        A TV mech CAN NOT be put into 2015X. Must have at least 150mm of separation.


        Is mech removable in part number 2015X?

        Yes, the mech in part number 2015X is removable.

        For more information on this part please refer to https://www.clipsal.com/Trade/Products/ProductDetail?catno=2015X


        User-added image

        Can I fit a USBC into a P2015X?

        Yes, you can put a USBC into a P2015X by using a P30Z as long as the extra switch is removable.

        Will 30USBCM fit on a C2000, Classic series plate?

        30USBCM will fit on C2015X / C2015XX / C2025X* / Up to 3-gang Classic series switch plates.
        For further information on 30USBCM, please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=30USBCM


        Is there a C2015XX cover in brushed aluminium?

        Yes, the part number for the cover in brushed aluminium is C2015XXC-BA

        Some of the features of the C2015XX are:
        • 2 Removable extra switch
        • Terminals suits 4 x 2.5 sq mm cables
        • 250V rated
        • 10A rated
        • C2000 Series
        For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=C2015XX

        Show More
        Office

        Range

        The contemporary styling and flexibility of the 2000 Series and C2000 range have made it Clipsal’s most popular range of switches and power points.

        2000 Series and C2000 range offers a range of stylish switches in standard and architrave sizes. Power points are available in single, double and automatic models, in vertical or horizontal format, with options such as neons, extra switches and safety shutters. The extensive product range also includes dimmers, fan speed controllers, timers, weatherproof switches and TV, data and phone sockets.
