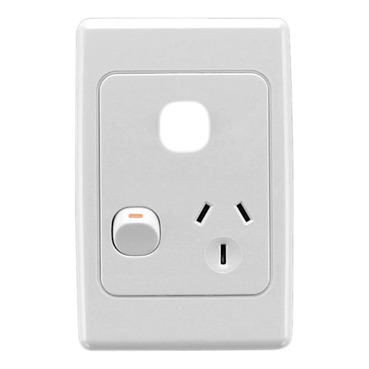

Single Switched Socket Vertical with Extra Switch Less Mechanism

White Electric | Single Switched Socket Vertical with Extra Switch Less Mechanism

Single Switched Socket Vertical with Extra Switch Less Mechanism

Item Number: 2015VXUA-WE

Retail
$58.52
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Sockets
Socket in kitchen

Specifications

Design

Range of product

Series 2000

Product or component type

switched socket

Product brand

Clipsal

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Control type

ON/OFF button

Number of gangs

1 gang

Pin number

3

Number of power socket outlets

1

Actuator

  • switch
  • rocker
    • Mounting position

      vertical

      Fixing mode

      by screws

      Local signalling

      without light indicator

      [Ue] rated operational voltage

      250 V AC

      [In] rated current

      10 A

      Depth

      12 mm

      Length

      116 mm

      Width

      76 mm

      Fixing center

      84 mm

      Standards

    • AS/NZS 3100
    • AS/NZS 3112
    • AS/NZS 3133:approval number S/1
      • REACh Regulation

        Free of Substances of Very High Concern above the threshold

        REACh free of SVHC

        Yes

        EU RoHS Directive

        Compliant

        Toxic heavy metal free

        Yes

        Mercury free

        Yes

        RoHS exemption information

        Yes

        China RoHS Regulation

         Pro-active China RoHS declaration (out of China RoHS legal scope)

        Environmental Disclosure

        ENVPEP111024EN

        Circularity Profile

        ENVEOLI110713EN

        Material

        Material

        plastic

        Others

        Unit Type of Package 1

        PCE

        Number of Units in Package 1

        1

        Package 1 Weight

        0.001 kg

        Package 1 Height

        12 mm

        Package 1 width

        76 mm

        Package 1 Length

        116 mm

        Unit Type of Package 2

        BB1

        Number of Units in Package 2

        10

        Package 2 Weight

        5 kg

        Package 2 Height

        122 mm

        Package 2 width

        141 mm

        Package 2 Length

        161 mm

        Unit Type of Package 3

        CAR

        Number of Units in Package 3

        100

        Package 3 Weight

        50 kg

        Package 3 Height

        254 mm

        Package 3 width

        348 mm

        Package 3 Length

        445 mm
        Show all specifications

        Documents & downloads

        hide show
        Filter items
        • All

        • Product Brochures

        • CAD Files and Packs

        • Technical Data Catalogues

        Frequently Asked Questions

        hide show

        Is there a 2000 Series plate 2025 with an ID window like the 2025XUA assembled with a 30PID?

        The part number for a 2000 Series powerpoint with an ID window like the 2025XUA assembled with a 30PID is 2025XAPID.
        Some of the key features are:
        • 30 PID
        • Removable extra switch
        • 10A
        • 250V
        For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=2025XAPID




        What is part number for cover to suit 3025VXUAG?

         The part number for cover to suit 3025VXUAG is the 3025VXC.



        What is the part number of the cover for C2025VXA?

        The C2025VXA has been redesigned. The latest versions will require C2025VXC2-**

        ** -  colour code

        Will the 60R32 fit into the 4025XA ?

        Yes, the 60R32 series are designed only to be fitted into the 4025XUA and 4025XA series

        What is the mechanism that goes into 4025XUA

        60R16 which is rated at 16 amps and used for general lighting etc.
        60r32 which is rated at 32 amps and can be used for stoves and ovens.

        Please see below link for  further documentation
        https://www.clipsal.com/Trade/Products/ProductDetail?catno=60R32

        Is there a 35A Mechanism for Saturn series?

        No, but there is a 32A mechanism.The part number for a 32Amp mechanism in the Saturn Series is a 60R32. This part is rated 32A suitable for the 4025XUA which is a standard double GPO with an extra removable switch.
        Unfortunately there is no 32A mechanism to suit the Saturn switch plates, they come complete on plate.(4061D32-PW)

        For further information please visit https://www.clipsal.com/products/detail?CatNo=60R32&tab-document-1=0
        https://www.clipsal.com/products/detail?CatNo=4061D32&backto=/search?q=4061D32&tab-document-1=0&itemno=4061D32-PW
        60R32 - Switch Mechanism Assembly 32A 250V4061D32-PW

        Office

        Range

        The contemporary styling and flexibility of the 2000 Series and C2000 range have made it Clipsal’s most popular range of switches and power points.

        2000 Series and C2000 range offers a range of stylish switches in standard and architrave sizes. Power points are available in single, double and automatic models, in vertical or horizontal format, with options such as neons, extra switches and safety shutters. The extensive product range also includes dimmers, fan speed controllers, timers, weatherproof switches and TV, data and phone sockets.
