Single Switched Socket Double Pole 10A Neon

Back to Accessory Home Sundry Items - Standard Range Accessory

White Electric | Single Switched Socket Double Pole 10A Neon

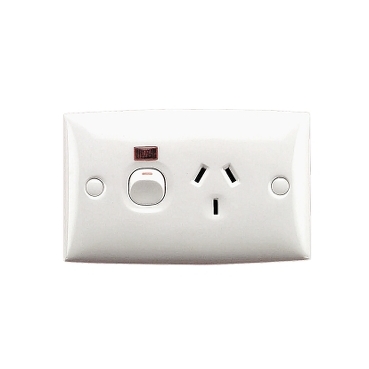

Single Switched Socket Double Pole 10A Neon

Item Number: 15DN-WE

Retail
$180.41
RRP (Inc. GST)
Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Standard Series

Product or component type

switched socket

Product brand

Clipsal

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Control type

ON/OFF button

Number of gangs

1 gang

Pin number

3

Number of power socket outlets

1

Actuator

  • rocker
  • switch

      • Mounting position

      horizontal

      Fixing mode

      by screws

      Local signalling

      indicator light

      [Ue] rated operational voltage

      250 V AC

      [In] rated current

      10 A

      Depth

      14 mm

      Length

      115 mm

      Width

      73 mm

      Fixing center

      84 mm

      Standards

    • AS/NZS 3100
    • AS/NZS 3112
    • AS/NZS 3133
    • AS/NZS 3000:approval number S/1

        • REACh Regulation

        Free of Substances of Very High Concern above the threshold

        EU RoHS Directive

        Compliant

        Mercury free

        Yes

        RoHS exemption information

        Yes

        China RoHS Regulation

        Product out of China RoHS scope. Substance declaration for your information

        Environmental Disclosure

        ENVPEP120506EN

        Material

        Material

        PC (polycarbonate)

        Others

        Unit Type of Package 1

        PCE

        Number of Units in Package 1

        1

        Package 1 Weight

        0.1 kg

        Package 1 Height

        14 mm

        Package 1 width

        73 mm

        Package 1 Length

        115 mm

        Unit Type of Package 2

        BB1

        Number of Units in Package 2

        5

        Package 2 Weight

        0.5 kg

        Package 2 Height

        117 mm

        Package 2 width

        102 mm

        Package 2 Length

        138 mm

        Unit Type of Package 3

        CAR

        Number of Units in Package 3

        50

        Package 3 Weight

        5 kg

        Package 3 Height

        262 mm

        Package 3 width

        273 mm

        Package 3 Length

        334 mm
        Show all specifications

        Frequently Asked Questions

        hide show

        What would be the part number for a double pole power point with neon indicator?

        This part is available in standard series part number 25DN (only available in white) 2000 series - 2025DN (available in red and white) and classic series C2025DN (available in red and white).

        Please see following link for more information for Installations and product information.

        https://www.clipsal.com/Trade/search-results?q=25DN
        https://www.clipsal.com/Trade/search-results?q=2025dn
        https://www.clipsal.com/Trade/search-results?q=C2025DN



        Can I mix lighting units using incandescent lamps and lighting units using LED lamps on the XVP range of illuminated beacons

        On the XVP range of illuminated beacons and tower lights, it is technically possible to mix lighting units using incandescent lamps and lighting units using LED lamps.

        Such mixing is not recommended because the electronic components in the LED lamps may be heated by the incandescent lamps.

        If this solution is chosen, it is vital to use incandescent and LED lamps that fit onto a BA 15d base fitting.

        What is the difference between the XVAC211 and the XVAC21?

        Issue:
        XVAC211 and XVAC21 Difference

        Product Line:
        Push Buttons and Operator Interface

        Environment:
        Tower Lights

        Cause:
        Product Features

        Resolution:
        They are the same cover and base units, but the XVAC21 does not include a gasket .

        Do you wire the negative line to the common terminal on the XVBC9B sounder?

        Issue:
        XVBC9B wiring

        Product Line:
        Harmong Tower Lights and Beacons

        Environment:
        XVB 70mm Diameter (2.75 inches)

        Resolution:
        The XVBC9B terminals are not polarity sensitive.

        How can a custom length of support tube be achieved with the XVB Indicating Bank?

        Issue:
        On the XVB indicating bank, how can a custom length of support be ordered?

        Product Line:
        Push Buttons and Operator Interface

        Environment:
        22 mm Push Buttons

        Resolution:
        Use the conduit adapter part number XVBC00 and the desired length of .5`` (1/2) conduit.

        For the XVP indicating banks, which terminal goes to which unit in the stack?

        Issue:
        XVP wiring installation

        Product Line:
        Tower Lights and Beacons

        Environment:
        50mm Diameter Harmony® XVP

        Resolution:
        The terminals are numbered 1 through 5 to correspond to the units in succession up the stack.  So the first unit is #1, second unit is #2.
        See the attached instructions, page 14.
