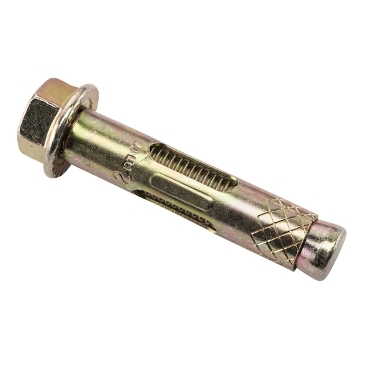

Thorsman Sleeve Anchor 12x75, Set of 50

Thorsman Sleeve Anchor 12x75, Set of 50

Thorsman Sleeve Anchor 12x75, Set of 50

Item Number: 1501546

Retail
$1.11
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Thorsman

Product or component type

sleeve anchor

Sustainable offer status

Green Premium product

Physical

Mounting support

  • concrete
  • brick
    • Quantity per set

      set of 50

      Sale per indivisible quantity

      50

      REACh free of SVHC

      Yes

      EU RoHS Directive

      Pro-active compliance (Product out of EU RoHS legal scope)

      Toxic heavy metal free

      Yes

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

       Pro-active China RoHS declaration (out of China RoHS legal scope)

      Environmental Disclosure

      ENVPEP111114EN

      Others

      Drilling diameter

      12 mm

      Threaded length

      75 mm

      Package 1 Weight

      67 g

      Package 1 Height

      20 mm

      Package 1 width

      20 mm

      Package 1 Length

      81 mm
      Show all specifications
