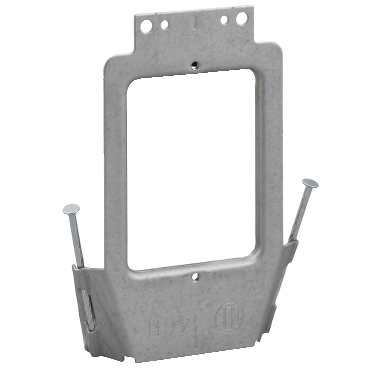

PDL Series Nailed Stud Bracket Horizontal

Back to Accessory Home Sundry Items - Standard Range Accessory

PDL Series Nailed Stud Bracket Horizontal

PDL Series Nailed Stud Bracket Horizontal

Item Number: 146H

Retail
$4.43
RRP (Inc. GST)
Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

PDL

Product brand

Clipsal

Product or component type

bracket

Physical

Mercury free

Yes

Environmental Disclosure

ENVPEP110719EN

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

RoHS exemption information

Yes

Toxic heavy metal free

Yes

Material

Material

metal

Others

Package 1 Height

25 mm

Package 1 Length

130 mm

Package 1 Weight

0.084 kg

Package 1 width

120 mm

Accessory / separate part category

mounting accessory
Show all specifications

Frequently Asked Questions

hide show

What is the part number for PDL single p/point with extra switch?

The part number for PDL single p/point with extra switch is 694X-WH.
Some of the Key Features are:
  • Larger rockers, matching the rockers on switch modules
  • Suits Cat 144 Flush Box and Cat 148H or 146H Mounting Bracket, Suits Cat 694M Metal cover plate
  • Removable extra switch 20 A

For more information , please visit: https://www.clipsal.com/Trade/Products/ProductDetail?catno=694X

Is there a vertical 500 series Shaver socket

PDL 2014 Pocket book - page 73, PDL1575
Universal 110V and 240V, direct replacement for the 63T
Note:Plate dimensions 146 x 90mm (HxW).
Mounting Centres 120mm (Flush box is PDL31)

What are the replacement interiors for the 9001BW Pendant control stations?

 Issue:
Needs the replacement contacts or interior for 9001BW pendant stations

Product line:
9001BW Pendant control

Environment:
North American Products

Resolution:
Note replace the * with the enclosure color Y = yellow, B = black R = red
9001BW92* - replacement interior is 9001BOC368
9001BW93* - replacement interior is 9001BOC368
9001BW94* - replacement interior is 9001BOC358
9001BW95* - replacement interior is 9001BOC359
9001BW96* - replacement interior is 9001BOC358
9001BW97* - replacement interior is 9001BOC359
9001BW98* - replacement interior is not available

9001BW90*U - replacement interior is 9001BOC366
9001BW91*U - replacement interior is 9001BOC359
9001BW94*U - replacement interior is 9001BOC358
9001BW100*U - replacement interior is 9001BOC367
9001BW102*U - replacement interior is 9001BOC367
