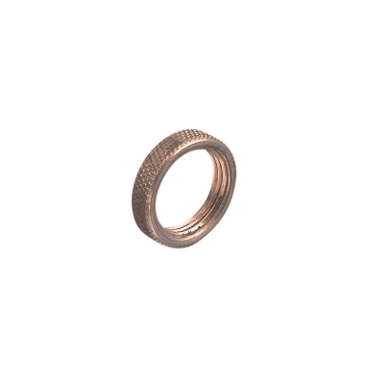

Cable Management Machined Brass, 16mm Brass Lock Ring

Cable Management Machined Brass, 16mm Brass Lock Ring

Cable Management Machined Brass, 16mm Brass Lock Ring

Item Number: 1260B16

Retail
$7.66
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal

Product or component type

lockring

Sustainable offer status

Green Premium product

Physical

Range compatibility

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP110719EN

Material

Material

brass

Others

Accessory / separate part category

fixing accessory

Diameter

  • external: 19 mm
  • thread: 16 mm
    • Height pitch dimension

      1.5 mm

      Thickness

      4.5 mm

      Package 1 Weight

      5.8 g
      Show all specifications

      Frequently Asked Questions

      hide show

      What is the dimension of 1260025 TMX-4E hollow wall anchor cavity fixing with screw?

      The dimension of 1260025 TMX-4E is 14mm (diameter) x 47mm (length). 1260025 is cavity fixing including fully threaded screw with combi-head and Phillips cross-slot.
      Benefits
      • Captive fixing – stays fixed even when the screw is not tightened
      • Anti-rotation design
      • Pre-assembled screw
      • High load values
      • Fire-resistant
      • Ideal for overhead cavity fixing
      Material and Operative Data:
      Material cavity fixing Expanding part: electroplated sheet metal
      Screw: electroplated steel
      Material mounting tool: Steel and plastic
      Temperature range:  –40°C to 80°C
      For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=1260025
      User-added image

      What is the maximum wire length for digital inputs and outputs on Powerlogic meters?

      Issue
      Customer would like to determine the maximum distance between a meter and a digital input source or an output signal receiver

      Product Line
      ION and Powerlogic meters with digital I/O options

      Resolution
      There is no absolute maximum distance of I/O wiring and actual length depends on several factors including:
      • The field voltage source
      • Wire AWG and manufacture specs
      • Wire type
      • Electrical noise and environment
      • Meter specs
      * The calculations below are meant to be a rough estimation and they are not accurate unless all the factors are considered *

      Digital Input Example:

      The PM800 equipped with a PM8M2222 Digital I/O extender with field source of 120 Vac. The wire to be used is a 16 AWG with a resistance of 4.016 ohm per 1000 feet. The PM800's digital input's turn on voltage is 20 Volts and the maximum current draw is 2 mA.

      Vdrop= Current X R (per1000 feet) *2*length
      Vinput= Vsource - Vdrop

      The Vinput needs to exceed the turn on voltage in order for the meter to recognize the signal. In this example, the theoretical maximum would be in the hundreds of thousands of feet. Needless to say, noise as well as other factors will affect the quality of the signal and practically limiting the cable run.

      Digital Output Example

      A similar calculation can be established for digital outputs once the specifications are known. For example, the ION 7650 has a maximum load of 3 A @ 380 VAC, hence the rated burden is 126.666 ohm. The total loop resistance should be less than the rated burden.  A 16 AWG wire has a resistance of 4.016 ohms per 1000 feet and the maximum theoretical distance that would sustain current without significant voltage drop would be 31,500 feet. Moreover, Form A digital output have a similar calculation given the maximum load voltage and current as well as the input source. For example, if the turn on is 20 volts on a PLC and the ION 7650's form A relay is rated at 80mA @ 30 VDC then :
      Vdrop= Current X R (per1000 feet) *2*length
      Vinput= Vsource - Vdrop
      The theoretical maximum attainable distance would be around 15,600 feet for a 16 AWG wire originating from the ION7650's I/O output.
