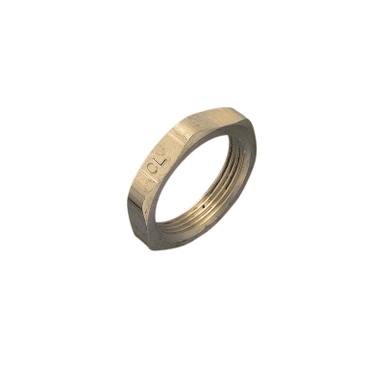

Cable Management Machined Brass, Steel Couplings, 40mm Brass Locknut

Cable Management Machined Brass, Steel Couplings, 40mm Brass Locknut

Cable Management Machined Brass, Steel Couplings, 40mm Brass Locknut

Item Number: 1259B40

Retail
$25.81
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal

Product or component type

lock nut

Sustainable offer status

Green Premium product

Physical

Range compatibility

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP110719EN

Material

Material

brass

Others

Number of Units in Package 1

1

Number of Units in Package 2

20

Number of Units in Package 3

200

Package 1 width

55 mm

Package 2 Height

70 mm

Package 2 Length

140 mm

Package 2 width

107 mm

Package 3 Height

226 mm

Package 3 Length

359 mm

Package 1 Height

6 mm

Package 1 Length

55 mm

Package 3 width

191 mm

Unit Type of Package 1

PCE

Unit Type of Package 2

BB1

Unit Type of Package 3

CAR

Accessory / separate part category

fixing accessory

Diameter

  • external: 52 mm
  • thread: 40 mm
    • Height pitch dimension

      1.5 mm

      Threaded length

      45 mm

      Thickness

      6 mm

      Package 1 Weight

      35.5 g

      Package 2 Weight

      0.8 kg

      Package 3 Weight

      8 kg
      Show all specifications

      Frequently Asked Questions

      hide show

      What is part number for lid to suit 1239/20/4?

      Part number 1239L20 will suit any of 1239/20 series.

      What is the replacement for RE11RMMW Timer?

       The replacement for RE11RMMW Timer is  RE17RMMW

      RE17RMMW
      time delay relay 10 functions - 1 s..100 h - 12..240 V AC/DC - 1 OC

      For more information see: https://eshop.schneider-electric.com/product.aspx?org=21&lang=1&dist=276&prod_id=RE17RMMW

      Conext SW - Installation/ Wiring issue.

      Issue:

      Customer is installing the Conext SW and wants to confirm the wiring of the AC and DC cabling.

      Environment:

      Conext SW 2524 120/240 Split-phase (865-2524)

      Conext SW 4024 120/240 Split-phase (865-4024)


      Resolution:


      See the attached wiring diagrams for the Conext SW and Conext SW-NA.
      Do not mix AC and DC wiring in the same conduit or panel. Consult the applicable installation code for details.
      There are two dual 3/4" /1" trade-size knockouts on the side panel and another two on the bottom panel for AC wiring. Use the same trade size of strain relief as the trade size of the knockout(s) you are using.



      What is the difference between the SyMax Model 50 programmable controllers 8005CP50 and 8005CP51?

      Issue

      What is the difference between the SyMax Model 50 programmable controllers 8005CP50 and 8005CP51?

      Product Line

      SyMax

      Environment

      8005CP50

      Resolution

      The difference between the two SyMax Model 50 programmable controllers is the power voltage rating.
      8005CP50 is a 120/240 VAC Processor Unit.
      8005CP51 is a 24 VDC Processor Unit.

      Control power rating on the CM4000 series meter is different than what is stated in the specifications in CM4 manual

      Issue
      Control power rating is different than what is shown in the CM4000 series user manual

      Product Line
      CM4000 Series

      Environment
      Wiring

      Resolution
      The control power for the CM4000 series Circuit Monitors is rated for a voltage range of 90-305V ac or 100-300V dc. It was our standard practice to publish these ratings. Recently a change was implemented to mark the circuit monitors with the nominal voltage ranges instead of the maximum range. As a result the meters now show a control power voltage range of 100-277 V ac or 125-250 V dc.
      If the customer needs a document with signature for their customer, you can send them the following document from John Straughn below.

      XW Won't qualify generator.

      Issue:

      XW inverter charger will not qualify AC generator. AC IN light blinks
      AC input qualification, overloading the generator, unable to sustain battery charging and and running loads (multi-tasking)


      Environment:

      XW 4024/4548/6048 with AC generator


      Resolution:

      1) Ensure generator is split phase 120/240, not 120 monophase or 120/208V. Voltage from (L1 to N) and (N to L2) should add up exactly to (L1 to L2) voltage
      3) Recommended, size your generator 2 times the rating of the XW system.
      2) Ensure no neutral to ground bond in Generator
      3) Connect gen output to AC2, not AC1 and open up AC2 parameters in XW advanced settings - ac settings menu
      4) Reduce max charge rate in XW
      5) If Kohler RES series generator, see  Solution 1179

      Cause:

      1) XW can only connect to splt-ph 120/240 unless converted to monophase
      2) Potential ground loop
      3) AC2 qualification parameter window much wider than AC1
      4) Gen being overloaded by combination of house loads and XW charger.
