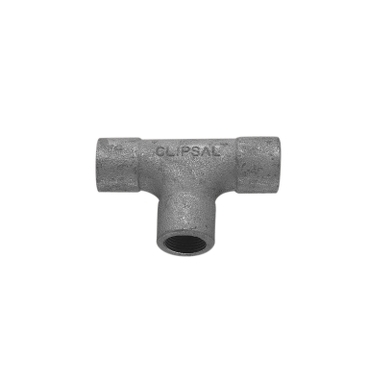

Series 1246 Machine Cast Fittings, Solid Tees, 20mm Galvanised Cast Iron

Series 1246 Machine Cast Fittings, Solid Tees, 20mm Galvanised Cast Iron

Series 1246 Machine Cast Fittings, Solid Tees, 20mm Galvanised Cast Iron

Item Number: 1246S20

Retail
N/A
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Series 1246

Surface treatment

galvanised

Sustainable offer status

Green Premium product

Physical

Length

  • 56 mm
  • 88 mm
    • REACh Regulation

      Free of Substances of Very High Concern above the threshold

      REACh free of SVHC

      Yes

      EU RoHS Directive

      Pro-active compliance (Product out of EU RoHS legal scope)

      Toxic heavy metal free

      Yes

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

       Pro-active China RoHS declaration (out of China RoHS legal scope)

      Environmental Disclosure

      ENVPEP110719EN

      Material

      Material

      cast iron

      Others

      Package 1 width

      55 mm

      Package 1 Height

      20 mm

      Package 1 Length

      85 mm

      Diameter

      inner: 20 mm

      Package 1 Weight

      0.25 kg
      Show all specifications

      Frequently Asked Questions

      hide show

      What is the part number for a 20mm steel conduit plug?

      The part number  for a 20mm brass plug for steel conduit is 1220S20.

      What is part number for lid to suit 1239/20/4?

      Part number 1239L20 will suit any of 1239/20 series.

      Does the 1240/25 series come with gaskets?

      No, they are light duty. Buy the 1240HL25 to obtain a heavy duty lid and gasket , or if gasket is required for retro fit then buy 1240GT
      For more information on this product range please visit the Clipsal web site on the link provided
      https://www.clipsal.com/Trade/search-results?q=1240

      Whati s pitch thread for part number 1245/25?

      Pitch thread is 1.5mm
