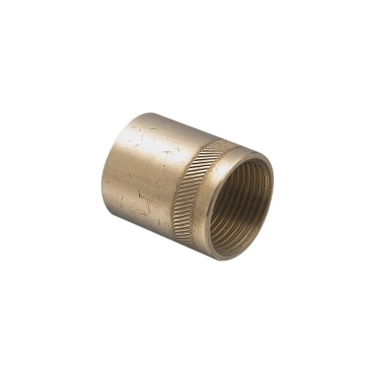

Cable Management Machined Brass, 3/4 in BSP Female to 20mm Female Coupling

Back to Machined Brass and Steel Fittings Home Conduit Fittings, Metal Machined Brass and Steel Fittings

Cable Management Machined Brass, 3/4 in BSP Female to 20mm Female Coupling

Cable Management Machined Brass, 3/4 in BSP Female to 20mm Female Coupling

Item Number: 1242BSP20/20

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Product brand

Clipsal

Product destination

diameter: 20-20 mm tube

Sustainable offer status

Green Premium product

Physical

Connector type

thread connector

Length

35 mm

Standards

  • BS 2779
  • CS 792/S
  • AS 1722.2
  • AS 2052
  • AS 1721

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP110719EN

Material

Material

brass

Others

Package 1 Bare Product Quantity

1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.525 cm

Package 1 Width

3.02 cm

Package 1 Length

3.02 cm

Package 1 Weight

0.094 kg

Unit Type of Package 2

BB1

Number of Units in Package 2

20

Package 2 Height

7 cm

Package 2 Width

10.7 cm

Package 2 Length

14 cm

Package 2 Weight

1.927 kg

Unit Type of Package 3

CAR

Number of Units in Package 3

100

Package 3 Height

11.7 cm

Package 3 Width

25 cm

Package 3 Length

31 cm

Package 3 Weight

9.9 kg
Show all specifications
