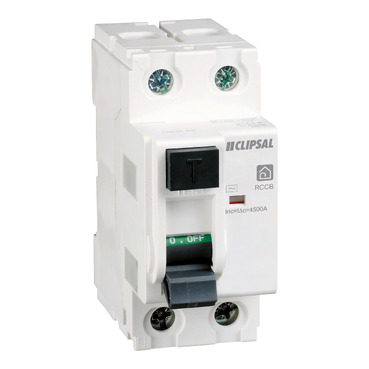

Clipsal Resi MAX Residual current circuit breaker 2P 63 A 30mA Type AC 250 V

Item Number: RCD263/30

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318795004648	-
60	CAR	29318795004642	-

Specifications

Design

Range	Resi MAX
Product or component type	residual current circuit breaker (RCCB)
Product brand	Clipsal
Device application	protection

Physical

[in] rated current	63 A
[ue] rated operational voltage	250 V AC
Standards	AS/NZS 61008
Ip degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Ambient air temperature for operation	-5...40 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2301023EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	6
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Poles description	2P
Number of modules	2
Network type	AC
Earth-leakage sensitivity	30 mA
Earth-leakage protection class	type AC
[uimp] rated impulse withstand voltage	6 kV
Size	81 x 36 x 75 mm conforming to DIN 43880
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8 cm
Package 1 width	4 cm
Package 1 length	9 cm
Package 1 weight	225 g
Unit type of package 2	BB1
Number of units in package 2	6
Package 2 height	9.6 cm
Package 2 width	10 cm
Package 2 length	26 cm
Package 2 weight	1.452 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	41 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.03915860386940101
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.01754158863477064
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	37.69953703703703
Carbon footprint of the use phase [b2, b3, b4, b6]	38 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.7307391046529459
Carbon footprint of the end-of-life phase [c1 to c4]	0.7 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Total lifecycle carbon footprint	41.339204565488565
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Scip number	2c7837a4-39fc-4abc-96ed-2ef14f8f87c7
End of life manual availability	N/A
Warranty (in months)	18
