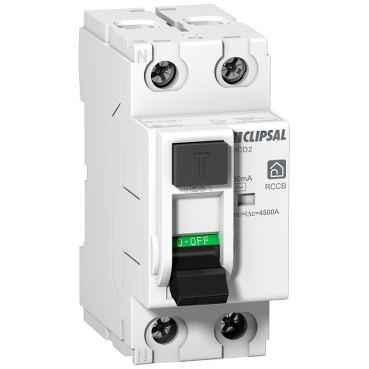

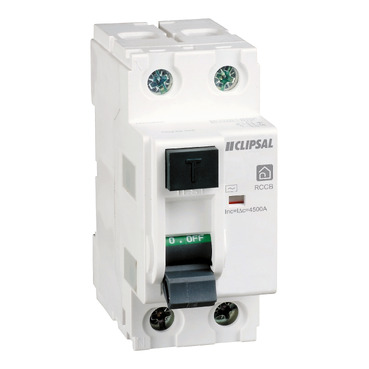

Clipsal Resi MAX Residual current circuit breaker 2P 40 A 30mA Type AC 250 V

Item Number: RCD240/30

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318795000312	-
60	CAR	19318795000319	-

Specifications

Design

Range	Resi MAX
Product or component type	residual current circuit breaker (RCCB)
Product brand	Clipsal
Device application	protection

Physical

[in] rated current	40 A
[ue] rated operational voltage	250 V AC
Standards	AS/NZS 61008
Ip degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Ambient air temperature for operation	-5...40 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2206035EN
Eu rohs directive	Compliant By Exemption

Others

Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Poles description	2P
Number of modules	2
Network type	AC
Earth-leakage sensitivity	30 mA
Earth-leakage protection class	type AC
[uimp] rated impulse withstand voltage	6 kV
Size	81 x 36 x 75 mm conforming to DIN 43880
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.0 cm
Package 1 width	4.0 cm
Package 1 length	9.0 cm
Package 1 weight	212.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	45 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.8343567374696215
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.03891324385944069
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.01743167653533774
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	40.93092592592591
Carbon footprint of the use phase [b2, b3, b4, b6]	41 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.7261604390142523
Carbon footprint of the end-of-life phase [c1 to c4]	0.7 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Total lifecycle carbon footprint	44.54778802280456
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Scip number	2c7837a4-39fc-4abc-96ed-2ef14f8f87c7
End of life manual availability	N/A
Warranty (in months)	18
