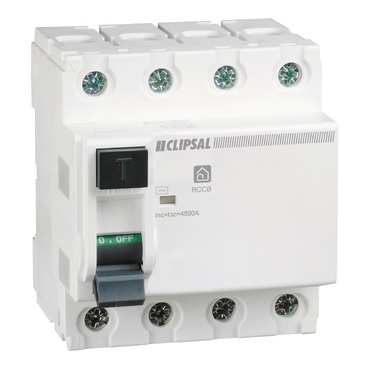

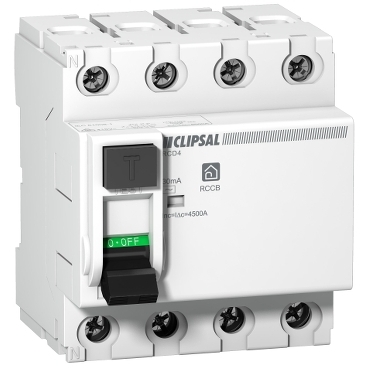

Clipsal - Max 4 Residual current circuit breaker 4P 63 A 30mA Type AC 415 V

Item Number: RCD463/30

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318795004655	-
30	CAR	29318795004659	-

Specifications

Design

Range	Resi MAX
Product or component type	residual current circuit breaker (RCCB)
Product brand	Clipsal
Device application	protection

Physical

[in] rated current	63 A
[ue] rated operational voltage	415 V AC
Standards	AS/NZS 61008
Ip degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Ambient air temperature for operation	-5...40 °C
Mercury free	Yes
Rohs exemption information	Yes

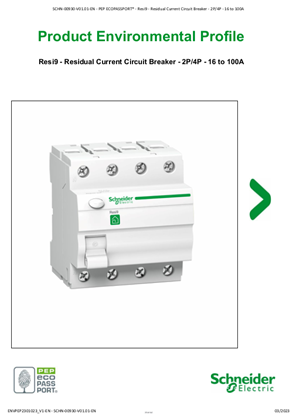

Environmental disclosure	ENVPEP2301023EN
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Package 2 bare product quantity	3
Package 1 bare product quantity	1
Poles description	4P
Number of modules	4
Network type	AC
Earth-leakage sensitivity	30 mA
Earth-leakage protection class	type AC
[uimp] rated impulse withstand voltage	6 kV
Size	81 x 72 x 75 mm conforming to DIN 43880
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8 cm
Package 1 width	8 cm
Package 1 length	9 cm
Package 1 weight	407 g
Unit type of package 2	BB1
Number of units in package 2	3
Package 2 height	9.6 cm
Package 2 width	10 cm
Package 2 length	25.6 cm
Package 2 weight	1.336 kg
Total lifecycle carbon footprint	64 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	6.183905622255972
Carbon footprint of the manufacturing phase [a1 to a3]	6 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.08489962618376726
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.03803185432065886
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	56.54930555555554
Carbon footprint of the use phase [b2, b3, b4, b6]	57 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.584312786783858
Carbon footprint of the end-of-life phase [c1 to c4]	2 kg CO2 eq.
Total lifecycle carbon footprint	64.4404554450998
Packaging made with recycled cardboard	Yes
Scip number	2c7837a4-39fc-4abc-96ed-2ef14f8f87c7
End of life manual availability	N/A
Warranty (in months)	18
