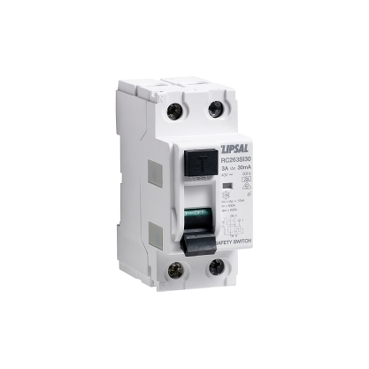

Clipsal - Max 4 Residual current circuit breaker 2P 63 A 30 mA type A-SI 240V

Item Number: 4RC263SI30

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318795022000	-
6	BB1	9311554727970	-
60	CAR	19318795022007	-

Specifications

Design

Range	MAX4
Product or component type	residual current circuit breaker (RCCB)
Product brand	Clipsal

Physical

[in] rated current	63 A
[ue] rated operational voltage	240 V AC
Mounting support	DIN rail
Standards	AS/NZS 61008
Ip degree of protection	IP40
Ambient air temperature for operation	-5...40 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2301023EN
Eu rohs directive	Compliant By Exemption

Others

Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	N/A
Legacy weee scope	In
	Outside of Europe
Poles description	2P
Number of modules	2
Earth-leakage sensitivity	30 mA
Earth-leakage protection class	type A-SI (Super Immunised)
[uimp] rated impulse withstand voltage	6 kV
Size	81 x 72 x 75 mm conforming to DIN 43880
Pollution degree	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.7 cm
Package 1 width	9.4 cm
Package 1 length	4.1 cm
Package 1 weight	219.0 g
Total lifecycle carbon footprint	42 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	3.6273060942669546
Carbon footprint of the manufacturing phase [a1 to a3]	4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.04979974635269715
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.02230842211710076
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	37.69953703703703
Carbon footprint of the use phase [b2, b3, b4, b6]	38 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.9293135726462858
Carbon footprint of the end-of-life phase [c1 to c4]	0.9 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Total lifecycle carbon footprint	42.32826487242007
Average percentage of recycled metal content	0 %
Scip number	2c7837a4-39fc-4abc-96ed-2ef14f8f87c7
End of life manual availability	N/A
Warranty (in months)	18
