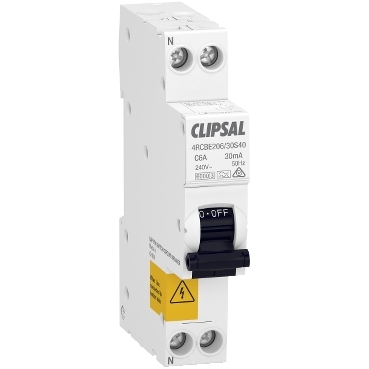

Clipsal - Max 4 RCBO SLIM 1PN 6A C curve 30mA (Tripping time <40ms)Type A 6000A

Clipsal - Max 4 RCBO SLIM 1PN 6A C curve 30mA (Tripping time <40ms)Type A 6000A

Item Number: 4RCBE206/30S40

Datasheet

Product Dimensions

Width icon

Width18 mm

Height icon

Height97 mm

Depth icon

Depth72 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

MAX4

Product or component type

residual current breaker with overcurrent protection (RCBO)

Product brand

Clipsal

Device application

distribution

Market segment

residential

Physical

[in] rated current

6 A

[ue] rated operational voltage

240 V AC 50 Hz

Control type

toggle

Local signalling

ON/OFF indication

Mounting mode

clip-on

Mounting support

DIN rail

Height

97 mm

Width

18 mm

Depth

72 mm

Net weight

136 g

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

<ul><li>tunnel type terminal - 1...16 mm² - flexible</li><li>tunnel type terminal - 1 x 10 mm² - flexible with ferrule</li></ul>

Wire stripping length

<ul><li>13 mm for top connection</li><li>11 mm for bottom connection</li></ul>

Standards

<ul><li>AS/NZS 61009.1</li><li>IEC 61009-1</li></ul>

Ip degree of protection

<ul><li>IP20 conforming to IEC 60529</li><li>IP40 (modular enclosure) conforming to IEC 60529</li></ul>

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-25...70 °C

Eu rohs directive

Under investigation

Others

Package 1 bare product quantity

1

Poles description

1P + N

Neutral position

left

Number of protected poles

1

Network type

AC

Trip unit technology

thermal-magnetic

Curve code

C

Earth-leakage sensitivity

30 mA

Earth-leakage protection class

type A

Breaking capacity

6000 A Icn at 240 V AC 50 Hz conforming to EN/IEC 61009-1

Quality labels

RCM

Device location in system

outgoer

Network frequency

50 Hz

Magnetic tripping limit

5...10 x In

Maximum tripping time

40 s

Limitation class

3 conforming to EN/IEC 61009-1

[ui] rated insulation voltage

400 V

[uimp] rated impulse withstand voltage

4 kV

Contact position indicator

yes

Connection pitch

9 mm between phase and neutral

9 mm pitches

2

Locking options description

<ul><li>sealable</li><li>padlocking device</li></ul>

Tightening torque

2 N.m top or bottom

Earth-leakage protection

integrated

Pollution degree

3

Overvoltage category

III conforming to IEC 60364

Electromagnetic compatibility

8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1

Tropicalisation

2 conforming to IEC 60068-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.65 cm

Package 1 width

1.8 cm

Package 1 length

7.15 cm

Package 1 weight

0.156 kg

Unit type of package 2

S03

Number of units in package 2

72

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

10.15 kg

Unit type of package 3

P06

Number of units in package 3

864

Package 3 height

150 cm

Package 3 width

60 cm

Package 3 length

80 cm

Package 3 weight

121.82 kg

Sustainable packaging

Yes
