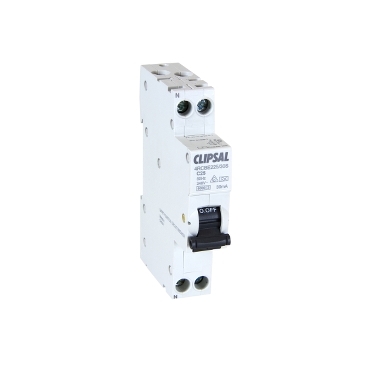

Clipsal - Max 4 RCBO SLIM 1PN 25A C curve 30mA Type A 6000A

Home ProductsCircuit ProtectionMax 4RCBO SLIM

Clipsal - Max 4 RCBO SLIM 1PN 25A C curve 30mA Type A 6000A

Item Number: 4RCBE225/30S

1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554722654	-
12	CRT	9311554722661	-
120	CAR	19311554722651	-

Specifications

Design

Range	MAX4
Product or component type	residual current breaker with overcurrent protection (RCBO)
Product brand	Clipsal

Physical

[in] rated current	25 A
[ue] rated operational voltage	240 V AC
Mounting support	DIN rail
Standards	AS/NZS 61009
Ip degree of protection	IP20 IP40
Ambient air temperature for operation	-5...40 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2209021EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Weee label	N/A
Warranty duration(in months) bmecat	18
	Outside of Europe
Poles description	1P + N
Number of modules	1
Curve code	C
Earth-leakage sensitivity	30 mA
Earth-leakage protection class	type A
Breaking capacity	6000 A
[uimp] rated impulse withstand voltage	4 kV
Size	92.5 x 18 x 71.5 mm conforming to DIN 43880
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.5 cm
Package 1 width	9.8 cm
Package 1 length	2.0 cm
Package 1 weight	146.0 g
Sustainable packaging	No
End of life manual availability	N/A
Warranty (in months)	18

Show all specifications
