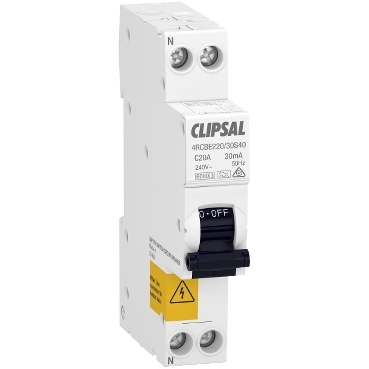

Clipsal - Max 4 RCBO SLIM 1PN 20A C curve 30mA (Tripping time <40ms)Type A 6000A

Home ProductsCircuit ProtectionMax 4RCBO SLIM

Clipsal - Max 4 RCBO SLIM 1PN 20A C curve 30mA (Tripping time <40ms)Type A 6000A

Item Number: 4RCBE220/30S40

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width18 mm

Height icon

Height97 mm

Depth icon

Depth72 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

MAX4

Product or component type

residual current breaker with overcurrent protection (RCBO)

Product brand

Clipsal

Device application

distribution

Market segment

residential

Physical

[in] rated current

20 A

[ue] rated operational voltage

240 V AC 50 Hz

Control type

toggle

Local signalling

ON/OFF indication

Mounting mode

clip-on

Mounting support

DIN rail

Height

97 mm

Width

18 mm

Depth

72 mm

Net weight

136 g

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

  • tunnel type terminal - 1...16 mm² - flexible
  • tunnel type terminal - 1 x 10 mm² - flexible with ferrule

Wire stripping length

  • 13 mm for top connection
  • 11 mm for bottom connection

Standards

  • AS/NZS 61009.1
  • IEC 61009-1

Ip degree of protection

  • IP20 conforming to IEC 60529
  • IP40 (modular enclosure) conforming to IEC 60529

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-25...70 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2209021

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Poles description

1P + N

Neutral position

left

Number of protected poles

1

Network type

AC

Trip unit technology

thermal-magnetic

Curve code

C

Earth-leakage sensitivity

30 mA

Earth-leakage protection class

type A

Breaking capacity

6000 A Icn at 240 V AC 50 Hz conforming to EN/IEC 61009-1

Quality labels

RCM

Device location in system

outgoer

Network frequency

50 Hz

Magnetic tripping limit

5...10 x In

Maximum tripping time

40 s

Limitation class

3 conforming to EN/IEC 61009-1

[ui] rated insulation voltage

400 V

[uimp] rated impulse withstand voltage

4 kV

Contact position indicator

yes

Connection pitch

9 mm between phase and neutral

9 mm pitches

2

Locking options description

  • sealable
  • padlocking device

Tightening torque

2 N.m top or bottom

Earth-leakage protection

integrated

Pollution degree

3

Overvoltage category

III conforming to IEC 60364

Electromagnetic compatibility

8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1

Tropicalisation

2 conforming to IEC 60068-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.65 cm

Package 1 width

1.8 cm

Package 1 length

7.15 cm

Package 1 weight

0.156 kg

Unit type of package 2

S03

Number of units in package 2

72

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

11.09 kg

Unit type of package 3

P06

Number of units in package 3

864

Package 3 height

150 cm

Package 3 width

60 cm

Package 3 length

80 cm

Package 3 weight

133.06 kg

Sustainable packaging

Yes
