Datasheet
Specifications
Design
| Range | Resi MAX |
|---|---|

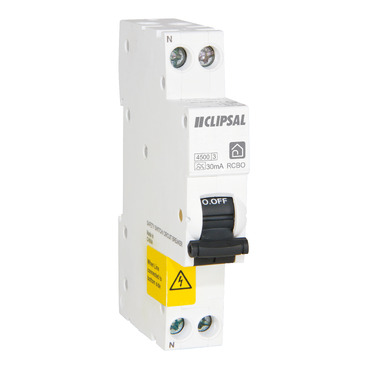

| Product or component type | residual current breaker with overcurrent protection (RCBO) |
| Product brand | Clipsal |
| Device application | distribution |
| Market segment | residential |
Physical
| [in] rated current | 16 A |
|---|---|
| [ue] rated operational voltage | 240 V AC |
| Control type | ON/OFF locking with trip free mechanism |
| Local signalling | ON/OFF indication |
| Mounting mode | clip-on |
| Mounting support | DIN rail |
| Standards | AS/NZS 61009 |
| Ip degree of protection |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2209021EN |
| Eu rohs directive | Compliant By Exemption |
Documents & downloads
-
All
-
Product Brochures
-
Environmental Disclosure
-
Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
Circuit Protection Slim RCBO Range. Same slim design... much bigger range, 26587
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
Clipsal Resi MAX Circuit Protection - The complete residential solution, 124301
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
A Powerful Choice, for all your switchboard requirements
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
Resi MAX circuit protection, 141178
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
Circuit Protection Resi MAX™ Solutions for Everyday Residential Needs
VERSION
2.0
DATE
21 Mar 2023
REVISION
2.0
Choosing the correct surge protection equipment. An easy to use guide for contractors
VERSION
1.0
DATE
10 Dec 2018
REVISION
1.0
RCBE216/30S EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
RCBE216/30S EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
RCBE216/30S EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
RCBE216/30S EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
RCBE216/30S REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
RCBE216/30S REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
Circuit Protection for Australian Homes
Resi MAX is a very simple range to cover essential circuit protection needs for Australian homes. Resi MAX range helps to provide optimised solution for single phase applications with carefully chosen range of plastic enclosures, surge protection, miniature circuit breakers, isolator switch, RCDs and RCBOs.
Slim Comb busbars and accessories are also available to simplify the installation with SLIM RCBOs and help to improve installation speed by up to 10 times. Plastic enclosures in this range are optimised to provide the best balance of aesthetics, wiring space and value for money.
Products in this range are must haves for each electrician’s van as it helps to optimise installation costs without compromising on quality or performance. All Resi MAX devices provide full flexibility to the installer with the option of feeding them either from top or bottom side. All products comply to relevant Australian standards for complete peace of mind.
