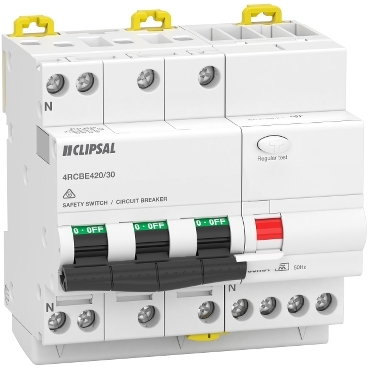

Clipsal - Max 4 RCBO 3P+N 20A C curve 30mA Type A 6000A 5 modules

Item Number: 4RCBE420/30

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width90 mm

Height91 mm

Depth78.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606489698713	-

Specifications

Design

Range	Clipsal MAX4
Product or component type	residual current breaker with overcurrent protection (RCBO)
Product brand	Clipsal
Market segment	small commercial

Physical

[in] rated current	20 A
[ue] rated operational voltage	380...415 V AC
Control type	toggle
Local signalling	ON, OFF, fault trip
Mounting mode	clip-on
Mounting support	DIN rail
Height	91 mm
Width	90 mm
Depth	78.5 mm
Net weight	498 g
Mechanical durability	20000 cycles
Electrical durability	20000 cycles
Connections - terminals	tunnel type terminal (top or bottom) - 0.75...16 mm² - rigid tunnel type terminal (top or bottom) - 0.33...10 mm² - flexible tunnel type terminal (top or bottom) - 0.33...10 mm² - flexible with ferrule
Wire stripping length	15 mm for top or bottom connection
Standards	AS/NZS 61009
Ip degree of protection	IP20 IP40
Relative humidity	90 % at 55 °C
Ambient air temperature for operation	-25...60 °C
Ambient air temperature for storage	-30...70 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2003017
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Poles description	3P + N
Number of protected poles	3
Network type	AC
Curve code	C
Earth-leakage sensitivity	30 mA
Earth-leakage protection class	type A
Breaking capacity	6 kA
Network frequency	50/60 Hz
[uimp] rated impulse withstand voltage	4 kV
Contact position indicator	yes
9 mm pitches	10
Locking options description	sealable padlocking device
Tightening torque	2 N.m top or bottom
Earth-leakage protection	integrated
Pollution degree	3
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.5 cm
Package 1 width	7.5 cm
Package 1 length	9.0 cm
Package 1 weight	500.0 g
Unit type of package 2	S03
Number of units in package 2	16
Package 2 height	30.0 cm
Package 2 width	30.0 cm
Package 2 length	40.0 cm
Package 2 weight	8.8 kg
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Average percentage of recycled metal content	0 %
Scip number	68d36cfc-4a9f-4fb1-86e1-1d28b1c3c5d6
End of life manual availability	N/A
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Product Brochures
Other technical guide
Environmental Disclosure
Installation Instruction
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Max4 RCBO 3PN C 20A 6000A 30mA A type 415V RCBO - 3D CAD

VERSION

1.0

DATE

30 Jan 2024

REVISION

1.0

DOWNLOAD (ZIP) 3.4 MB

PDF

Choosing the correct surge protection equipment. An easy to use guide for contractors

VERSION

1.0

DATE

10 Dec 2018

REVISION

1.0

DOWNLOAD (PDF) 513 KB

PDF

Surge Protection Product Guide

VERSION

1.0

DATE

10 Dec 2018

REVISION

1.0

DOWNLOAD (PDF) 100.6 KB

ZIP

Assist 3P+N RCBO technical guide - Clipsal

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 528.3 KB

ZIP

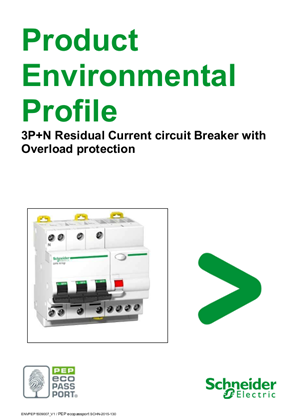

3P+N Residual Current circuit Breaker with Overload protection - PEP

VERSION

1.0

DATE

31 Jul 2025

REVISION

1.0

DOWNLOAD (ZIP) 191.5 KB

ZIP

Installation Instructions - F166/06 - 4RCBE Series Module (18mm) 1 Pole Combination, Residual Current Device and Miniature Circuit Breaker, 21101

VERSION

1.0

DATE

22 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 1 MB

ZIP

4RCBE420/30 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

4RCBE420/30 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

Frequently Asked Questions

What is a 3 phase 20 amp RCBO made up of?

Hide Show

The part number for a 3 phase, 20Amp RCBO is a 4RCBE420/30.

Specifications

Supply Voltage	415 V AC
Rating	20A
Fault Current	6000A
Sensitivity	30mA
Poles	3P+N
Type	Type A
Pole Width	5 Modules (18mm × 5)
Curve Type	C - Curve
Top or Bottom Fed	Both
IP Rating	IP20
Mount	Din-Rail (Double Locking Clip)
Indicator	Positive Contact and Red Flag
Certification	Approval to AS/ NZS 61009.1:2015

For further information please visit https://www.clipsal.com/products/detail?catno=4RCBE420/30&tab-document-1=0
