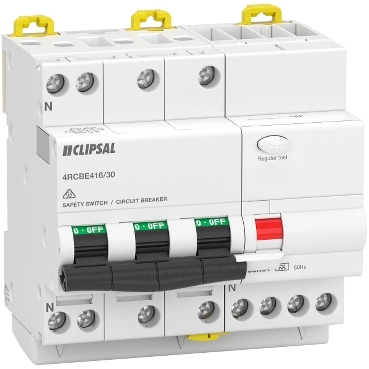

Clipsal - Max 4 RCBO 3P+N 16A C curve 30mA Type A 6000A 5 modules

Clipsal - Max 4 RCBO 3P+N 16A C curve 30mA Type A 6000A 5 modules

Item Number: 4RCBE416/30

Datasheet

Product Dimensions

Width icon

Width90 mm

Height icon

Height91 mm

Depth icon

Depth78.5 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal MAX4

Product or component type

residual current breaker with overcurrent protection (RCBO)

Product brand

Clipsal

Market segment

small commercial

Sustainable offer status

Green Premium product

Physical

[in] rated current

16 A

[ue] rated operational voltage

380...415 V AC

Control type

toggle

Local signalling

ON, OFF, fault trip

Mounting mode

clip-on

Mounting support

DIN rail

Height

91 mm

Width

90 mm

Depth

78.5 mm

Net weight

498 g

Mechanical durability

20000 cycles

Electrical durability

20000 cycles

Connections - terminals

tunnel type terminal (top or bottom) - 0.33...10 mm² - flexible|tunnel type terminal (top or bottom) - 0.33...10 mm² - flexible with ferrule|tunnel type terminal (top or bottom) - 0.75...16 mm² - rigid

Wire stripping length

15 mm for top or bottom connection

Standards

AS/NZS 61009

Ip degree of protection

IP20|IP40

Relative humidity

90 % at 55 °C

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-30...70 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2003017

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Poles description

3P + N

Number of protected poles

3

Network type

AC

Curve code

C

Earth-leakage sensitivity

30 mA

Earth-leakage protection class

type A

Breaking capacity

6 kA

Network frequency

50/60 Hz

[uimp] rated impulse withstand voltage

4 kV

Contact position indicator

yes

9 mm pitches

10

Locking options description

sealable|padlocking device

Tightening torque

2 N.m top or bottom

Earth-leakage protection

integrated

Pollution degree

3

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.5 cm

Package 1 width

7.5 cm

Package 1 length

9.0 cm

Package 1 weight

500.0 g

Unit type of package 2

S03

Number of units in package 2

16

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

8.8 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Halogen content performance

Halogen free plastic parts & cables product
