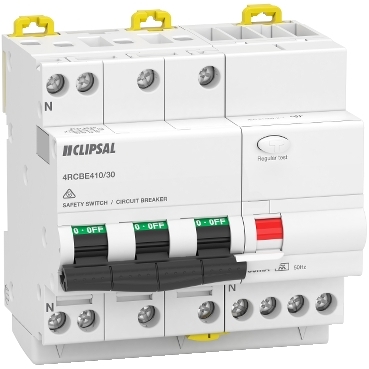

Clipsal - Max 4 RCBO 3P+N 10A C curve 30mA Type A 6000A 5 modules

Name: Clipsal - Max 4 RCBO 3P+N 10A C curve 30mA Type A 6000A 5 modules
Brand: Clipsal
SKU: 4RCBE410/30
Availability: InStoreOnly

Width90 mm

Height91 mm

Depth78.5 mm

Qty	UoM	EAN	Colour
1	PCE	3606489698690	-

Specifications

Design

Range	Clipsal MAX4
Product or component type	residual current breaker with overcurrent protection (RCBO)
Product brand	Clipsal
Market segment	small commercial

Physical

[in] rated current	10 A
[ue] rated operational voltage	380...415 V AC
Control type	toggle
Local signalling	ON, OFF, fault trip
Mounting mode	clip-on
Mounting support	DIN rail
Height	91 mm
Width	90 mm
Depth	78.5 mm
Net weight	498 g
Mechanical durability	20000 cycles
Electrical durability	20000 cycles
Connections - terminals	tunnel type terminal (top or bottom) - 0.33...10 mm² - flexible with ferrule tunnel type terminal (top or bottom) - 0.33...10 mm² - flexible tunnel type terminal (top or bottom) - 0.75...16 mm² - rigid
Wire stripping length	15 mm for top or bottom connection
Standards	AS/NZS 61009
Ip degree of protection	IP20 IP40
Relative humidity	90 % at 55 °C
Ambient air temperature for operation	-25...60 °C
Ambient air temperature for storage	-30...70 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2003017
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Average percentage of recycled plastic content	0 %
Average percentage of bio-based plastic content	0 %
Package 1 bare product quantity	1
Poles description	3P + N
Number of protected poles	3
Network type	AC
Curve code	C
Earth-leakage sensitivity	30 mA
Earth-leakage protection class	type A
Breaking capacity	6 kA
Network frequency	50/60 Hz
[uimp] rated impulse withstand voltage	4 kV
Contact position indicator	yes
9 mm pitches	10
Locking options description	sealable padlocking device
Tightening torque	2 N.m top or bottom
Earth-leakage protection	integrated
Pollution degree	3
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.5 cm
Package 1 width	7.5 cm
Package 1 length	9.0 cm
Package 1 weight	500.0 g
Unit type of package 2	S03
Number of units in package 2	16
Package 2 height	30.0 cm
Package 2 width	30.0 cm
Package 2 length	40.0 cm
Package 2 weight	8.8 kg
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Average percentage of recycled metal content	0 %
Scip number	68d36cfc-4a9f-4fb1-86e1-1d28b1c3c5d6
End of life manual availability	N/A
Warranty (in months)	18
