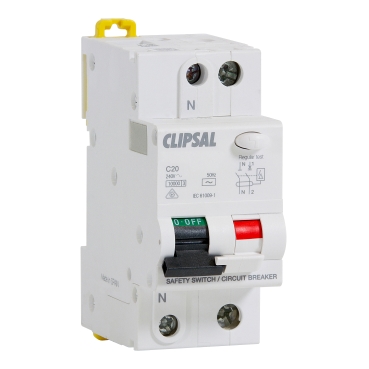

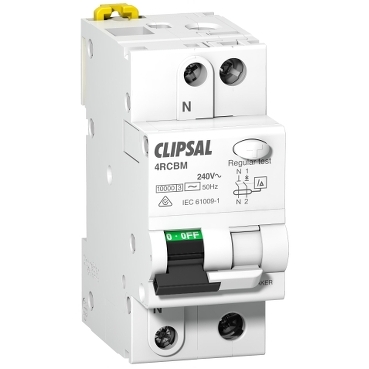

Clipsal - Max 4 RCBO 2 module 2P 25 A C curve 30mA Type AC 6000A

Item Number: 4RCBM225/30

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

MAX4

Product or component type

residual current breaker with overcurrent protection (RCBO)

Product brand

Clipsal

Physical

[in] rated current

25 A

[ue] rated operational voltage

240 V AC

Standards

AS/NZS 61009

Ip degree of protection

  • IP20
  • IP40

Ambient air temperature for operation

-5...40 °C

Mercury free

Yes

Rohs exemption information

Yes

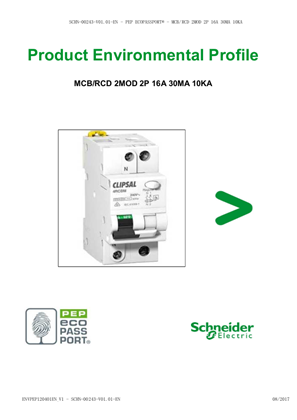

Environmental disclosure

ENVPEP120401EN

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Weee label

N/A

Outside of Europe

Package 1 bare product quantity

1

Legacy weee scope

In

Poles description

2P

Number of modules

2

Curve code

C

Earth-leakage sensitivity

30 mA

Earth-leakage protection class

type AC

Breaking capacity

6000 A

[uimp] rated impulse withstand voltage

4 kV

Size

81 x 36 x 77.5 mm conforming to DIN 43880

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.4 cm

Package 1 width

10.3 cm

Package 1 length

4.2 cm

Package 1 weight

228.0 g

Sustainable packaging

No

Halogen-free status

Halogen free plastic parts product

Halogen-free status

Halogen free plastic parts product

End of life manual availability

N/A

Warranty (in months)

18
