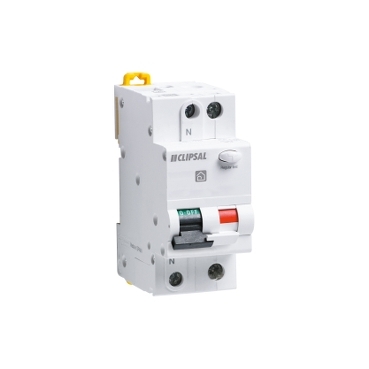

Clipsal - Max 4 RCBO 2 module 1PN 10A C curve 30mA Type AC 6000A
Item Number: RCBM210/30
Datasheet
Close
Specifications
Design
| Range | Resi MAX |
|---|---|
| Product or component type | residual current breaker with overcurrent protection (RCBO) |
| Product brand | Clipsal |
| Device application | distribution |
Physical
| [in] rated current | 10 A |
|---|---|
| [ue] rated operational voltage | 250 V AC |
| Local signalling | ON/OFF indication |
| Mounting mode | clip-on |
| Mounting support | DIN rail |
| Standards | AS/NZS 61009 |
| Ip degree of protection |
|
| Ambient air temperature for operation | -5...40 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1204001EN |
| Eu rohs directive | Compliant By Exemption |
