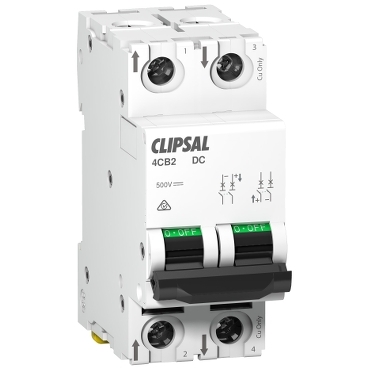

Clipsal - Max 4 Miniature circuit breaker DC Network type 2P 16 A C curve 6000 A 500 V

Item Number: 4CB216/6DC

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width36 mm

Height81 mm

Depth78.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318795005966	-
5	CRT	9318795007144	-
60	CAR	29311554007144	-

Specifications

Design

Product brand	Clipsal

Physical

Number of poles	2
[in] rated current	16 A
[ue] rated operational voltage	500 V
Mechanical durability	20000 cycles
Connections - terminals	screw terminal for 1 cable(s) 1-25 mm² rigid screw terminal for 1 cable(s) 1-16 mm² flexible screw terminal for 1 cable(s) 1-16 mm² flexible with ferrule
Wire stripping length	14 mm
Ambient air temperature for operation	-25...70 °C
Ambient air temperature for storage	-40...85 °C
Standards	AS/NZS 60898
Relative humidity	95 % at 55 °C
Height	81 mm
Width	36 mm
Depth	78.5 mm
Net weight	256 g
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes

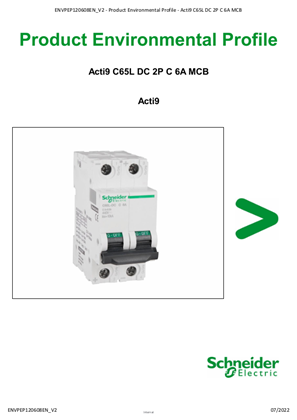

Environmental disclosure	ENVPEP1206008EN
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Curve code	C
Number of modules	2
Breaking capacity	6 kA conforming to IEC 60947-2
Network type	DC
[uimp] rated impulse withstand voltage	6 kV
[ui] rated insulation voltage	500 V
Tightening torque	2 N.m
Pollution degree	3
Tropicalisation	2 conforming to IEC 60068-2 2 conforming to GB 14048.2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.1 cm
Package 1 width	3.6 cm
Package 1 length	7.9 cm
Package 1 weight	0.227 kg
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Average percentage of recycled metal content	0 %
End of life manual availability	N/A
Warranty (in months)	18
