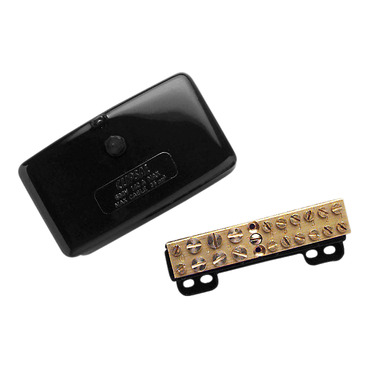

Clipsal - Max 4 Mini Neutral link 140 A 500 V 10 hole with cover front wiring Black

Clipsal - Max 4 Mini Neutral link 140 A 500 V 10 hole with cover front wiring Black

Item Number: L10/35

Datasheet

Product Dimensions

Width icon

Width62 mm

Height icon

Height108 mm

Depth icon

Depth55 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

MAX9

Product brand

Clipsal

Range of product

Blue Point

Product or component type

neutral link

Physical

[in] rated current

140 A

[ue] rated operational voltage

500 V

Connector type

screw terminals

Number of poles

1

Height

108 mm

Width

62 mm

Depth

55 mm

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Cable cross section

35 mm²

Number of mounting holes

10

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.6 cm

Package 1 width

6.5 cm

Package 1 length

11.1 cm

Package 1 weight

273.0 g

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
