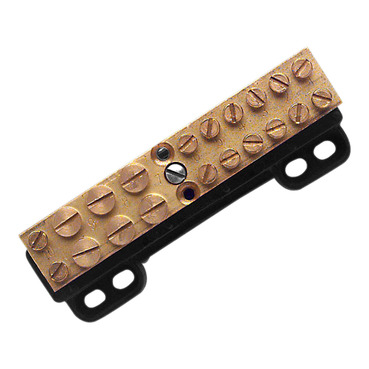

Clipsal - Max 4 Mini Neutral link 140 A 500 V 10 hole less cover front wiring Black
Item Number: L10/35A
Datasheet
Close
Specifications
Design
Range
MAX9
Product brand
Clipsal
Range of product
Blue Point
Product or component type
neutral link
Physical
[in] rated current
140 A
[ue] rated operational voltage
500 V
Connector type
screw terminals
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs exemption information
Yes
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Cable cross section
35 mm²
Number of mounting holes
10
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.7 cm
Package 1 width
3.8 cm
Package 1 length
10 cm
Package 1 weight
225 g
Packaging made with recycled cardboard
Yes
