Specifications
Design
Range
MAX9
Product brand
Clipsal
Range of product
Blue Point
Product or component type

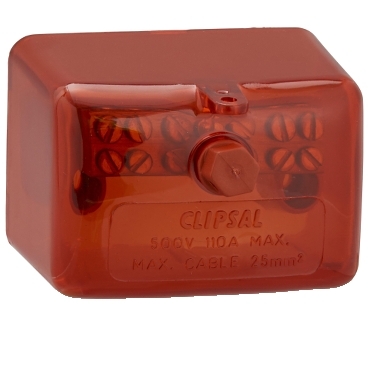

neutral link
Physical
[in] rated current
110 A
[ue] rated operational voltage
500 V
Connector type
screw terminals
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Cable cross section
25 mm²
Number of mounting holes
6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.2 cm
Package 1 width
4.7 cm
Package 1 length
6.5 cm
Package 1 weight
0.09 kg
Packaging made with recycled cardboard
No
Packaging without single use plastic
No
Take-back
No
Take-back
No
Product contributes to saved and avoided emissions
No
Recycled metal content at cr level
0
Removable battery
N/A
Minimum percentage of recycled plastic content
0
